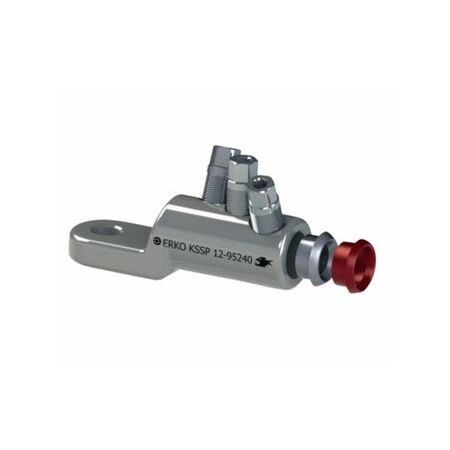

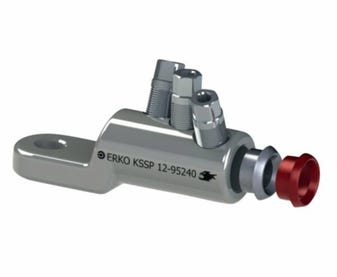

Lug Tinned Mechanical Shear 120-300 SQMM | Compatible with Copper & Aluminium | IEC Compliant by Cabac
The Cabac Lug Tinned Mechanical Shear 120-300 SQMM is a high-quality aluminium mechanical lug designed for reliable and damage-free connections of copper and aluminium conductors in electrical power systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LUG TINNED MECHANICAL SHEAR 120-300 SQMM
Brand: Cabac
SKU: KSSP-12-120300
Alternatively Known As: Tinned Mechanical Lug, Aluminium Mechanical Connector, Shear Bolt Lug, Cable Lug Connector
Technical Specifications
- Suitable for copper and aluminium conductors class 1, 2, and 5
- Cross-section range: 10 to 1000 mm²
- Bolt breaking place flush with connector body surface
- Complies with IEC, EN 61238-1-3 standards
- Designed to reduce partial discharges and clamping force relaxation
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 0.3 kg
Key Features
- Bolt breaking place is repeatable flush with the outer surface of the connector body
- Compatible with copper and aluminium class 1, 2, and 5 connectors across 10 to 1000 mm² cross-section range
- No damage to cable conductors during assembly
- Higher resistance to clamping force relaxation
- Reduction of partial discharges in connectors
- Significant reduction in the number of connector-pressing unit sets compared to traditional solutions
- Repeatability of cable connection system in terms of required clamping force
- Reduction of friction forces during installation, preventing damage to cable conductors
- Capability to connect class 5 flexible conductors without screw fittings
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper torque and secure connections.
Applications
- Electrical power connectivity for copper and aluminium conductors
- Suitable for class 1, 2, and 5 conductors in industrial and commercial electrical installations
- Used in mechanical connections for cables ranging from 120 to 300 square millimeters
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces waste by ensuring durable and reliable cable connections
- Minimizes damage to conductors, extending cable life and reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac's warranty policy for details.
Available Now
The Cabac Lug Tinned Mechanical Shear 120-300 SQMM is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable mechanical lugs.
