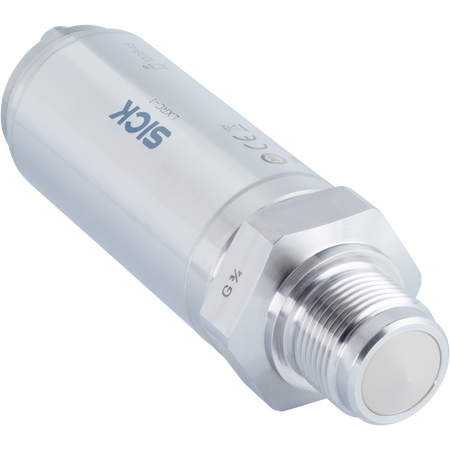

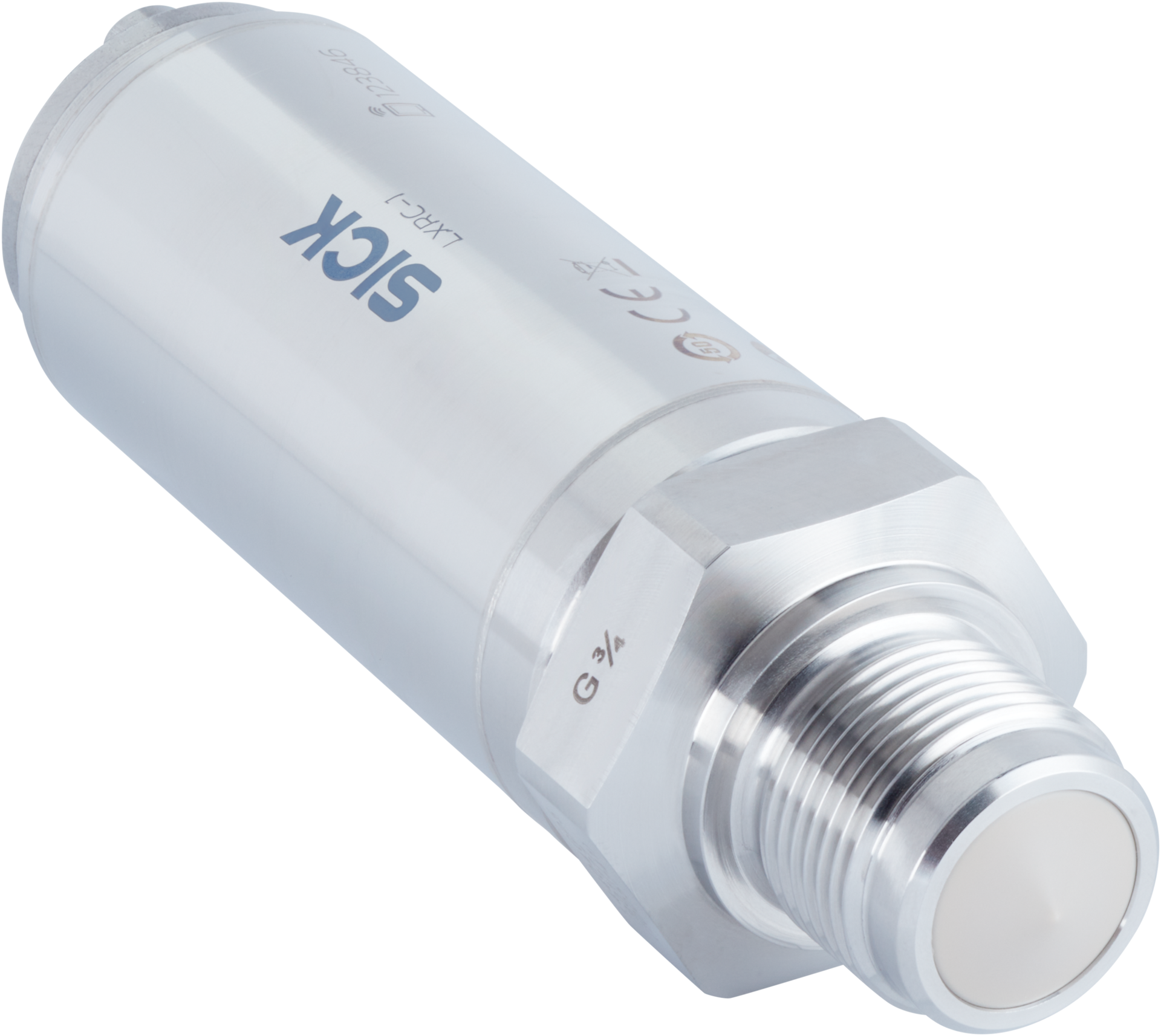

LXRC-1XXXGXXAAEXAX Level sensors
The SICK LXRC-1XXXGXXAAEXAX level sensor offers precise continuous and switch level measurement for fluids and bulk solids with robust stainless steel construction
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LXRC-1XXXGXXAAEXAX | Level sensors
Brand: SICK
SKU: 6085684
Alternatively Known As: Radar Level Sensor, Continuous Level Transmitter, IO-Link Level Sensor, Industrial Level Sensor
Technical Specifications
- Medium: Fluids, bulk solids
- Measurement: Continuous, switch
- Probe type: Thread with integrated horn antenna made from PEEK
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: 0 m to 15 m
- Angle of dispersion: 14°
- Process pressure: -1 bar to 16 bar
- Process temperature: -40 °C to +130 °C
- Accuracy of sensor element: ±2 mm
- Reproducibility: ≤1 mm
- Resolution: <1 mm
- Response time: 1000 ms
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 35 V DC
- Initialization time: ≤5 s
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signal: 2 x PNP/NPN + 4 mA to 20 mA
- Power consumption: ≤3.5 W
- Inductive load: ≤0.5 H
- Capacitive load: ≤100 nF
- Enclosure rating: IP66, IP67, IP69
- Lower signal level: 3.8 mA to 4 mA
- Upper signal level: 20 mA to 20.5 mA
- Wetted parts: Stainless steel 1.4404 / 316L, PEEK, FKM
- Process connection: ¾" NPT, PN16, ASME B1.20.1
- Housing material: Stainless steel 1.4404 / 316L
- Male connector material: Stainless steel
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 50mm x 50mm
- Weight: 1.5 kg
Key Features
- Suitable for fluids and bulk solids
- Continuous and switch measurement capabilities
- Probe with integrated horn antenna made from PEEK
- Frequency band: W-band (75 to 85 GHz)
- Measuring range up to 15 meters
- Process pressure range from -1 bar to 16 bar
- Process temperature range from -40 °C to +130 °C
- High accuracy of ±2 mm and reproducibility ≤1 mm
- Fast response time of 1000 ms
- Communication interface: IO-Link
- Supply voltage from 12 V DC to 35 V DC
- Enclosure rating IP66, IP67, IP69 for robust protection
- Wetted parts made of stainless steel 1.4404 / 316L, PEEK, and FKM
- Process connection ¾" NPT, PN16, ASME B1.20.1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link communication and industrial sensor mounting to ensure proper setup and safety compliance.
Applications
- Continuous and switch level measurement in fluids and bulk solids
- Industrial process control requiring precise level monitoring
- Applications involving harsh environments with pressure and temperature variations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient process control reducing waste and spillage
- Durable materials extend product life and reduce replacement frequency
- Low power consumption design
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LXRC-1XXXGXXAAEXAX level sensor is available for immediate purchase, ideal for industrial applications requiring reliable level measurement of fluids and bulk solids.
