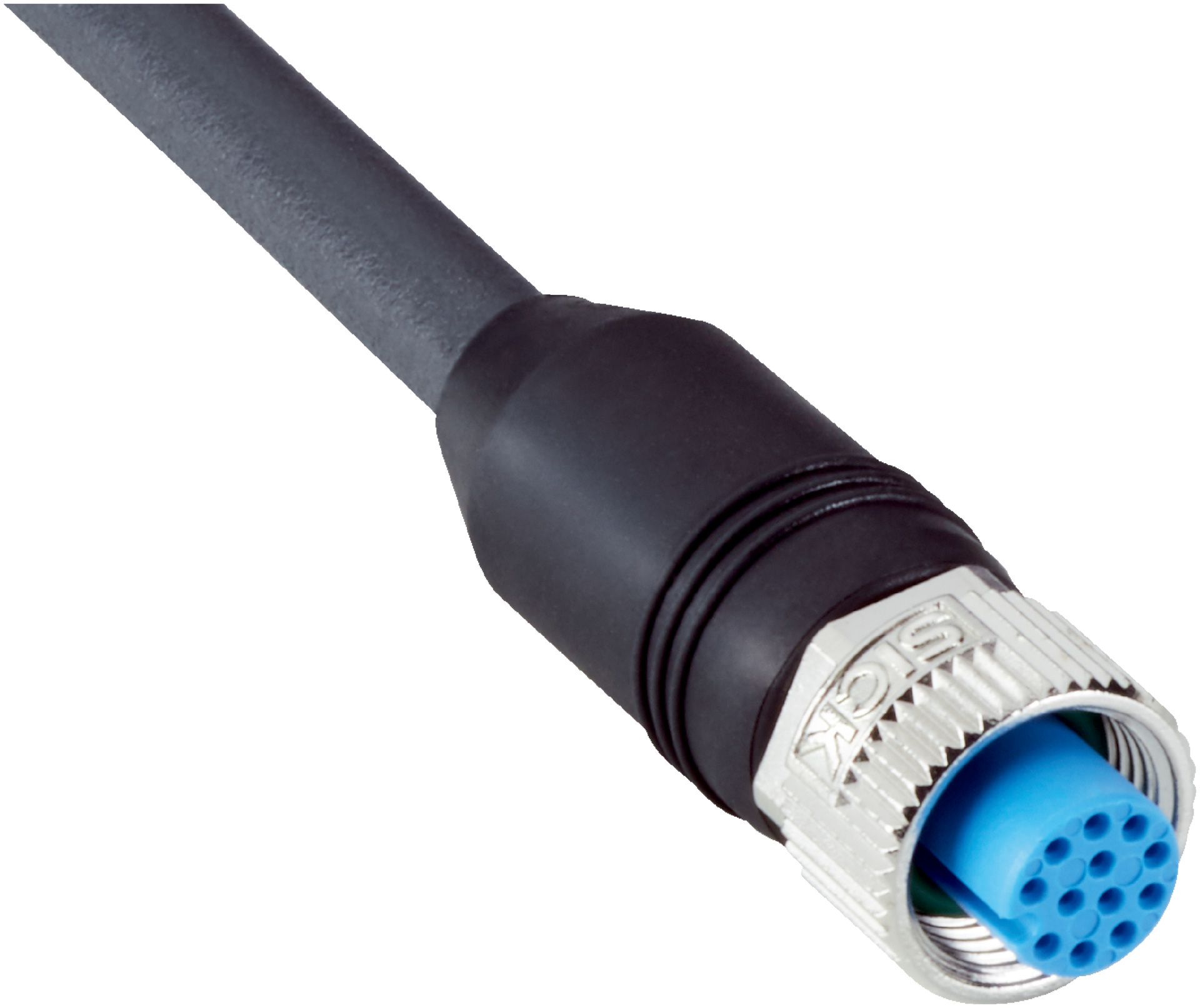

M12 12-Pin Sensor Cable | 5m PUR Halogen-Free | IP65/IP66/IP67 Rated | by SICK
The M12 12-Pin Sensor Cable is designed for robust industrial applications, featuring a 5m PUR halogen-free cable with a female connector and screw locking mechanism. Ideal for robotics and drag chain operations, this cable withstands extreme temperatures from -40 °C to +85 °C and offers IP65/IP66/IP67 protection, ensuring durability and reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 12-pin, Actuator cable 5m, Industrial sensor cable, PUR cable sensor connector
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 12-wire, PUR, halogen-free
- Cable diameter: 6 mm
- Conductor cross section: 0.14 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 15 x cable diameter, Stationary position > 7.5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +85 °C, Stationary position -40 °C to +85 °C, Drag chain operation -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 1,500 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 1.5 A
- Traversing speed: 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Torsion force: 180°
- Enclosure rating: IP65 / IP66 / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Dimensions (H x L x W): 6mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female M12, 12-pin straight A-coded connector
- 5 m PUR halogen-free cable with 12 wires
- Screw connection locking plug
- Zinc die-cast nickel-plated locking nut
- FKM seal material for durability
- IP65 / IP66 / IP67 rated enclosure for protection
- High bending radius suitable for flexible and stationary use
- Operating temperature range from -40 °C to +85 °C
- Torsion force capability of 180°
- Supports traversing speed up to 3.3 m/s and acceleration ≤ 5 m/s²
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial sensor cabling and electrical safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

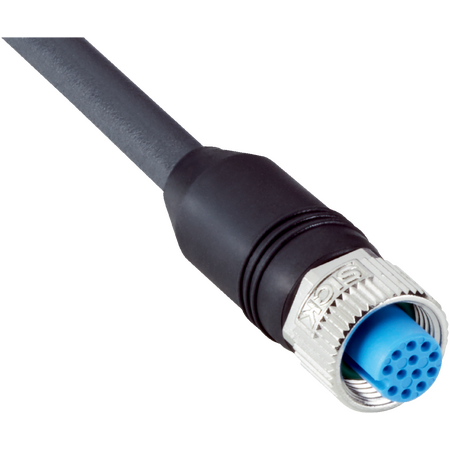

The SICK YF2A1B-050UD1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications.
