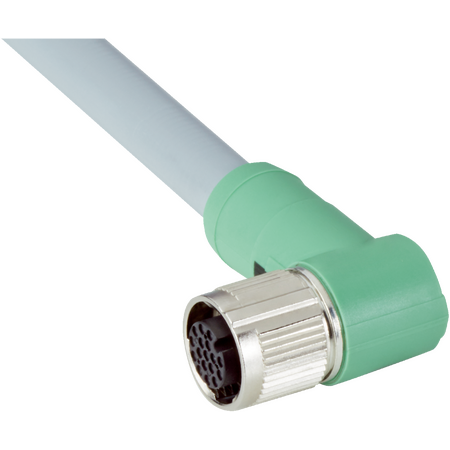

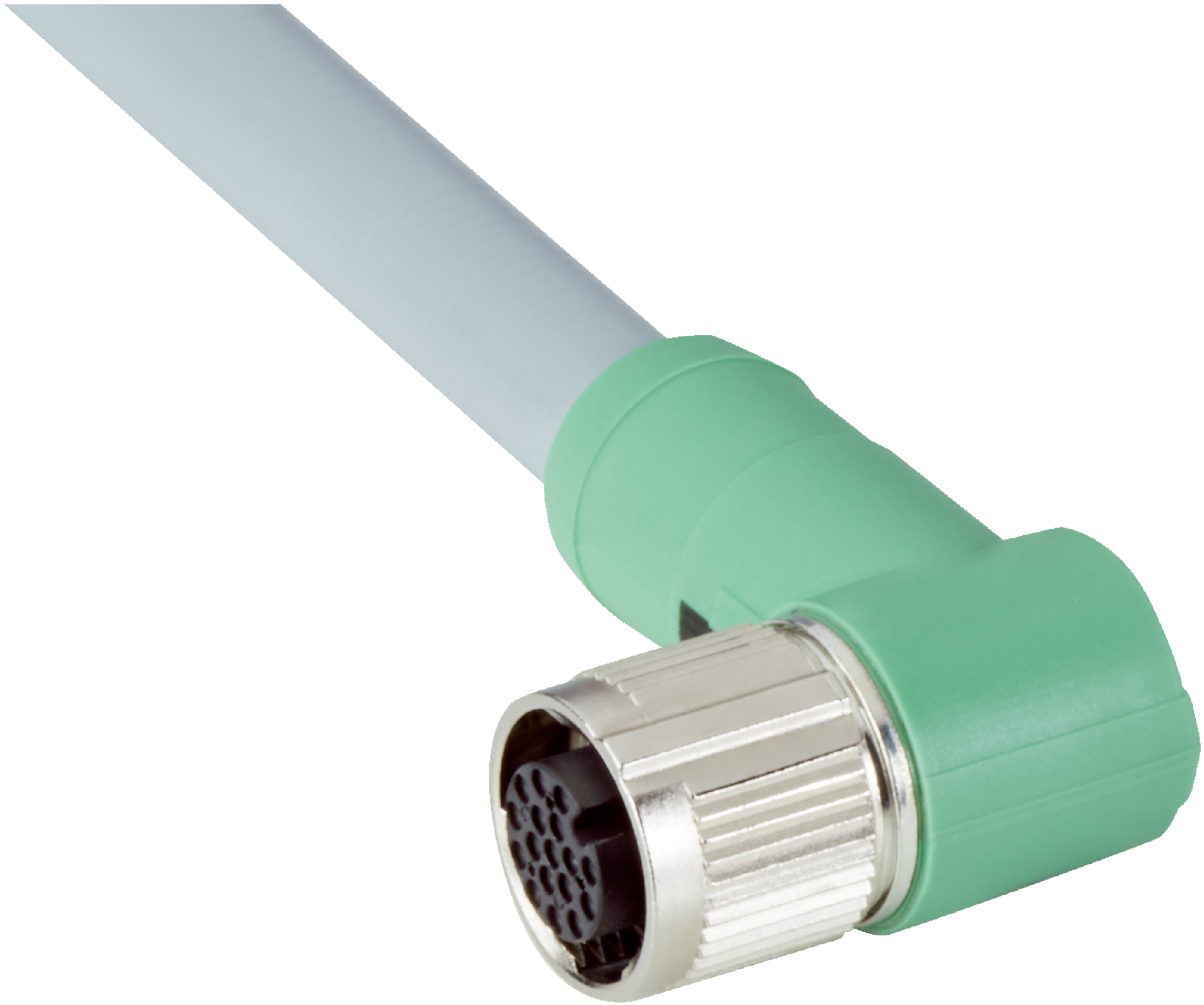

M12 17-Pin Industrial Cable | 5m Shielded | Quick Screw Connection | Flexible Use | by SICK
The M12 17-pin industrial cable is designed for reliable signal and power transmission in industrial automation systems. With a 5m length and a quick screw connection, this shielded cable supports up to 1,000,000 bending cycles, making it ideal for drag chain operation environments. Operating in temperatures from -40 °C to +80 °C, it ensures durability and efficiency in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 17-pin industrial cable, SICK YG2ASD cable, Drag chain cable with M12 connector
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Quick screw connection
- Cable length: 5 m
- Cable diameter: 9.1 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 1,000,000
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Power, serial, CAN, digital I/Os
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C
- Max permissible current at 50 °C: 3 A for contacts 1 and 2; 100 mA for remaining contacts
- Max permissible current at 40 °C: 2 A for two contacts; 1.5 A for 15 contacts
- Dimensions (H x L x W): 15mm x 5000mm x 15mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 17-pin, angled, A-coded
- 5 m, 17-wire shielded cable with quick screw connection
- High bending radius suitable for flexible use and drag chain operation
- Supports up to 1,000,000 bending cycles
- Operating temperature range from -40 °C to +80 °C
- 3-A suitable with changed color coding of flying leads
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial cabling to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems
- Drag chain operation environments
- Power, serial, CAN, and digital I/O signal transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Shielded cable reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YG2ASD-050XXXXLECX industrial cable is available for immediate purchase, ideal for industrial automation and drag chain applications requiring reliable signal and power transmission.
