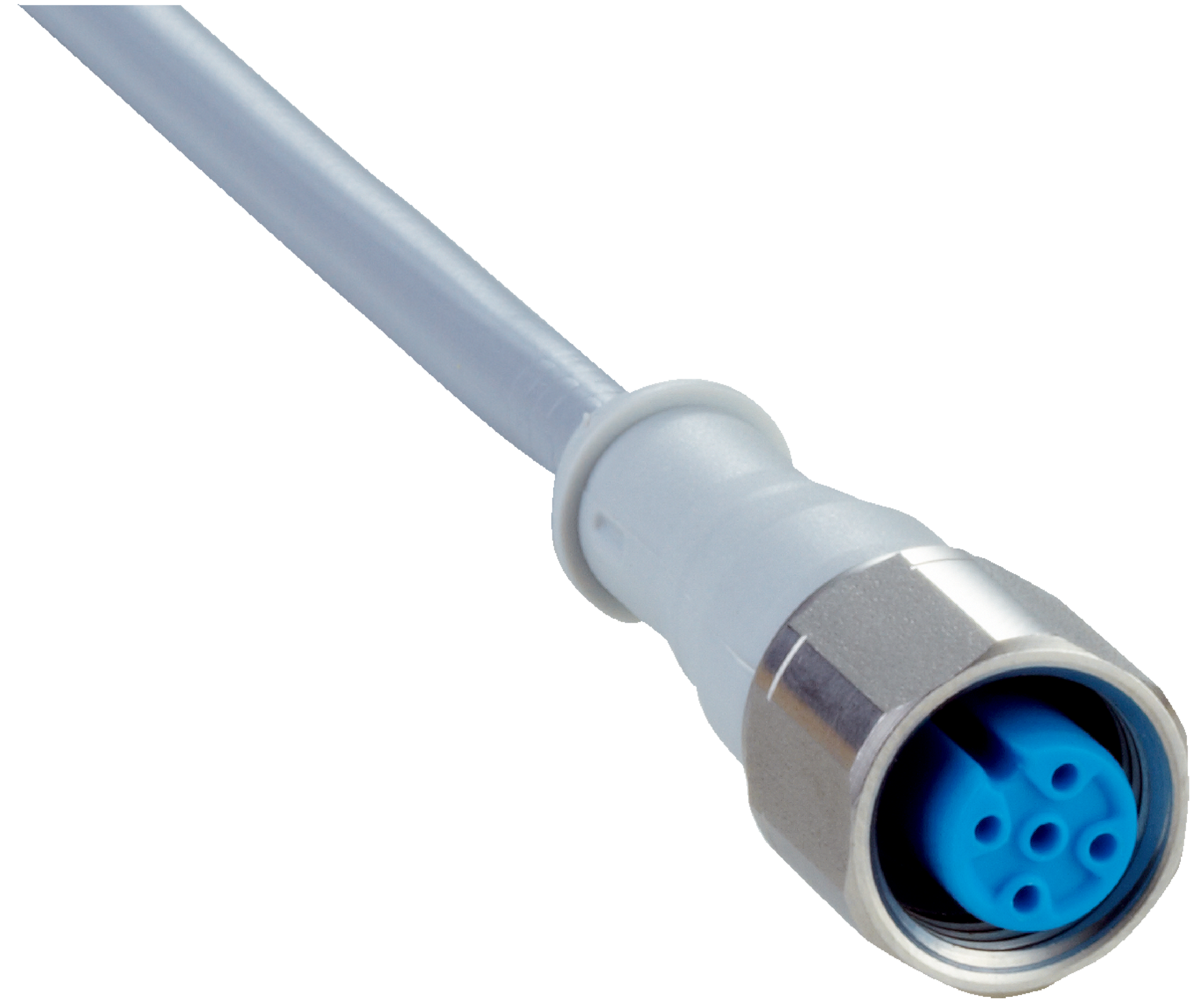

M12 4-Pin Female Connector Cable 25m Length PUR Material SICK

BRAND: SICK
SKU: 6052619
$120.50 List price: $151.50
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
The M12 4-Pin Female Connector Cable is designed for sensor and actuator applications, featuring a durable 25m length and robust PUR material.

Alternatively Known As: M12 4-pin female connector cable, sensor cable 25m, actuator cable M12, PUR connector cable

Technical Specifications
  • Connection type head A: Female connector, M12, 4-pin, straight
  • Connection type head B: Flying leads
  • Connector material: PUR
  • Connector color: Gray
  • Locking nut material: Stainless steel (V4A/1.4404)
  • Tightening torque: 0.6 Nm
  • Cable length: 25 m
  • Cable type: 4-wire, PVC
  • Jacket material: PVC
  • Jacket color: Gray
  • Cable diameter: 5 mm
  • Conductor cross section: 0.34 mm²
  • Shielding: Unshielded
  • Bending radius flexible use: > 10 x cable diameter
  • Bending radius stationary position: > 5 x cable diameter
  • Operating temperature flexible use: -5°C to +80°C
  • Operating temperature stationary position: -30°C to +80°C
  • Operating temperature head: -25°C to +85°C
  • Reference voltage: ≤ 250 V
  • Rated impulse voltage: 2.5 kV
  • Current loading: 4 A
  • Signal type: Sensor/actuator cable
  • Enclosure rating: IP65 / IP67 / IP69K
  • Dimensions (H x L x W): 14mm x 25000mm x 14mm
  • Weight: 0.3 kg
Key Features
  • Female connector M12, 4-pin, straight
  • 25 meter length, 4-wire PVC cable
  • Connector material made of PUR with gray color
  • Locking nut made of stainless steel (V4A/1.4404)
  • IP65, IP67, and IP69K enclosure rating for robust protection
  • Operating temperature range: Flexible use -5°C to +80°C, Stationary position -30°C to +80°C, Head -25°C to +85°C
  • Tightening torque of 0.6 Nm
  • Unshielded cable with 0.34 mm² conductor cross section
  • Bending radius: Flexible use > 10x cable diameter, Stationary position > 5x cable diameter
Professional Installation Requirements
  • Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Sensor and actuator cable applications
  • Use in uncontaminated zones
  • Suitable for hygienic and washdown zones
  • Zones with chemical exposure (with noted chemical resistance limitations)
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable materials and high chemical resistance reduce replacement frequency and waste
  • Certified with ECOLAB for hygienic and chemical resistance standards
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.

Available Now

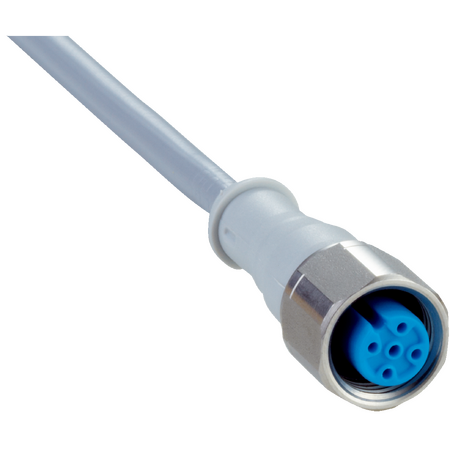

The SICK DOL-1204-G25MNI M12 4-Pin Female Connector Cable 25m is available for immediate purchase, ideal for industrial sensor and actuator applications in hygienic and chemical zones.
