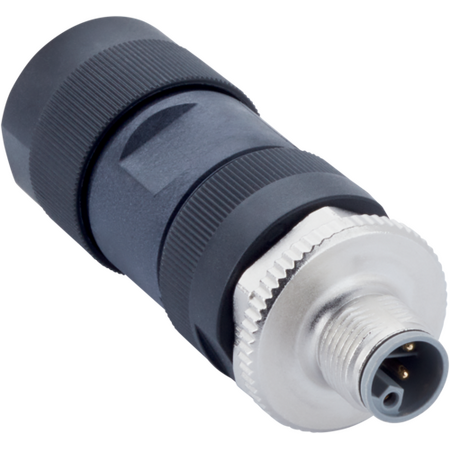

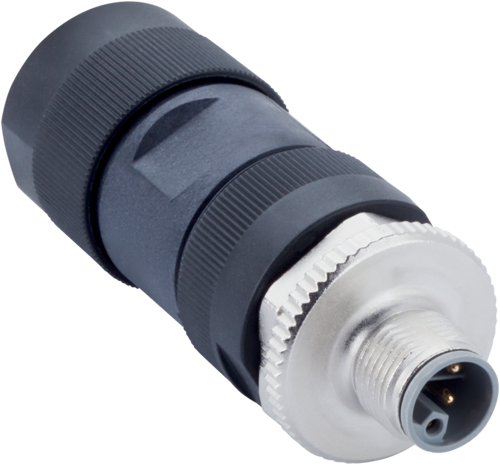

M12 4-Pin Male Connector L-Coded IP67 Rated SICK
The M12 4-Pin Male Connector is designed for robust industrial applications, featuring a straight, L-coded design with screw-type terminals for secure connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 4-pin male connector, M12 L-coded connector, Industrial sensor connector, SICK M12 connector
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, L-coded
- Connection type: Screw-type terminals
- Connector material: PA
- Connector color: Black
- Locking nut material: CuZn
- Tightening torque: 0.6 Nm
- Shielding: Unshielded
- Permitted cable diameter: 8 mm to 13 mm
- Permitted cross-section: 1.5 mm² to 2.5 mm²
- Reference voltage: ≤ 63 V DC
- Current loading: 16 A
- Enclosure rating: IP67
- Operating temperature: -40 °C to +105 °C
- UL File No.: E335179
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, straight, L-coded
- Screw-type terminals for secure connection
- Connector material: PA with black color
- Locking nut made of CuZn
- Tightening torque of 0.6 Nm
- Unshielded design
- Permitted cable diameter from 8 mm to 13 mm
- Permitted cross-section from 1.5 mm² to 2.5 mm²
- Current loading capacity of 16 A
- Enclosure rating IP67 for dust and water protection
- Operating temperature range from -40 °C to +105 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Sensor and actuator connections
- Machine building and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YM12PA5-0003S0003L M12 4-pin Male Connector is available for immediate purchase, ideal for industrial automation and sensor connection applications.
