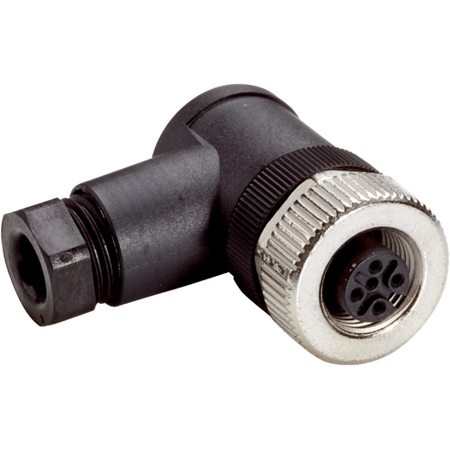

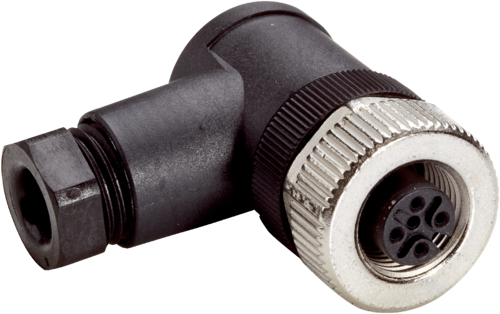

M12 5-Pin Female Connector Angled Design IP67 Rated SICK

BRAND: SICK
SKU: 6009720
$39.00 List price: $49.00
+ −
30 Days Return Electricians Unlock Trade Access
The M12 5-pin female connector is designed for reliable connections in industrial automation and control systems.

Alternatively Known As: M12 5-pin female connector, angled M12 connector, industrial sensor connector

Technical Specifications
  • Connection type head A: Female connector, M12, 5-pin, angled, A-coded
  • Connection type: Screw-type terminals
  • Connector material: PBT
  • Connector color: Black
  • Locking nut material: CuZn
  • Tightening torque: 0.6 Nm
  • Shielding: Unshielded
  • Permitted cable diameter: 4 mm to 6 mm
  • Permitted cross-section: ≤ 0.75 mm²
  • Reference voltage: ≤ 63 V
  • Current loading: 4 A
  • Enclosure rating: IP67
  • Operating temperature: -40 °C to +85 °C
  • Dimensions (H x L x W): 20mm x 40mm x 20mm
  • Weight: 0.1 kg
Key Features
  • Female connector, M12, 5-pin, angled, A-coded
  • Screw-type terminals for secure wiring
  • Connector material: PBT with black color
  • Locking nut made of CuZn for durability
  • Tightening torque of 0.6 Nm ensures secure connection
  • Unshielded design
  • Permitted cable diameter from 4 mm to 6 mm
  • Permitted cross-section up to 0.75 mm²
  • Current loading capacity of 4 A
  • Enclosure rating IP67 for dust and water protection
  • Operating temperature range from -40 °C to +85 °C
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial automation and control systems
  • Sensor and actuator connections in manufacturing
  • Robotics and machinery requiring reliable electrical connections
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
  • Compliant with China RoHS, ensuring reduced hazardous substances.
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.

Available Now

The SICK DOS-1205-W connector is available for immediate purchase, ideal for industrial automation and sensor connection applications.
