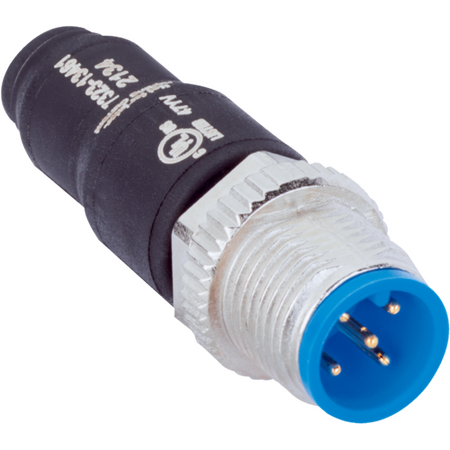

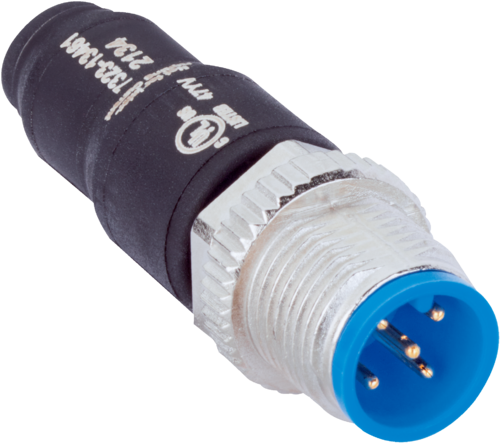

M12 5-Pin Male Connector IP67 Rated TPU Material SICK

BRAND: SICK
SKU: 2123627
$74.40 List price: $93.50
+ −
30 Days Return Electricians Unlock Trade Access
The M12 5-pin male connector is designed for robust industrial automation systems, featuring a durable TPU construction and an IP67 rating for dust and water
Technical Specifications
  • Connection type head A: Male connector, M12, 5-pin, straight, A-coded
  • Connector material: TPU
  • Connector color: Black
  • Locking nut material: Zinc die-cast, nickel-plated
  • Reference voltage: ≤ 30 V
  • Signal type: CANopen, DeviceNet™
  • Authorizations: UL, CE
  • UL File No.: E335179
  • Enclosure rating: IP67
  • Operating temperature: -25 °C to +85 °C
  • Contamination rating: 3
  • Overvoltage category: III
  • Dimensions (H x L x W): 20mm x 50mm x 20mm
  • Weight: 0.1 kg
Key Features
  • Male connector, M12, 5-pin, straight, A-coded
  • Connector material: TPU with black color
  • Locking nut made of zinc die-cast, nickel-plated
  • Signal types supported: CANopen, DeviceNet™
  • Enclosure rating IP67 for dust and water protection
  • Operating temperature range from -25 °C to +85 °C
  • Contamination rating 3
  • Overvoltage category III
  • Certified with UL, CE, cULus
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician familiar with industrial connectors and communication protocols.
Applications
  • Industrial automation systems
  • Machine connectivity and communication
  • Sensor and actuator networking
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable materials and IP67 rating reduce replacement frequency and electronic waste
  • Supports efficient industrial communication reducing energy consumption in automation
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK YM2W15-000000XXXXX M12 5-pin male connector is available for immediate purchase, ideal for industrial automation and communication applications.
