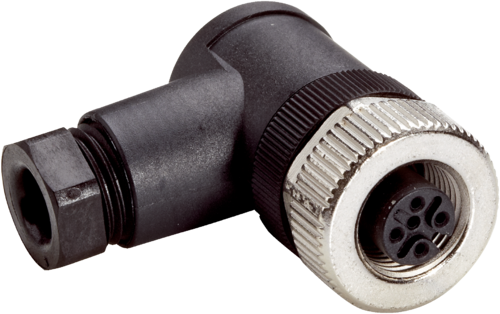

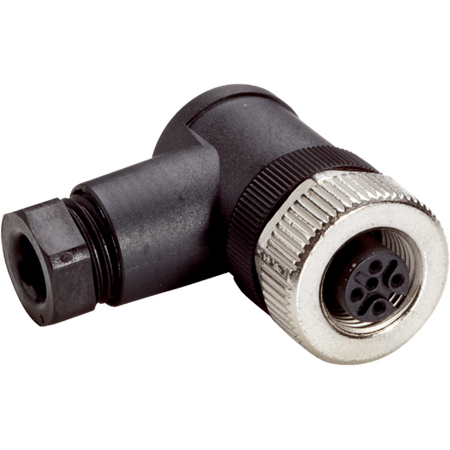

M12 Female Connector 4-Pin Angled A-Coded IP67 Rated SICK

BRAND: SICK
SKU: 6007303
$36.60 List price: $46.00
+ −
30 Days Return Electricians Unlock Trade Access
The M12 Female Connector is designed for industrial automation and sensor connectivity, featuring a 4-pin angled A-coded design and screw-type terminals for secure

Alternatively Known As: M12 Female Connector, Industrial Sensor Connector, IP67 Connector, Screw Terminal Connector

Technical Specifications
  • Connection type head A: Female connector, M12, 4-pin, angled, A-coded
  • Connection type: Screw-type terminals
  • Connector material: PBT
  • Connector color: Black
  • Locking nut material: CuZn
  • Tightening torque: 0.6 Nm
  • Shielding: Unshielded
  • Permitted cable diameter: 4 mm to 6 mm
  • Permitted cross-section: ≤ 0.75 mm²
  • Reference voltage: ≤ 250 V
  • Current loading: 4 A
  • Enclosure rating: IP67
  • Operating temperature: -40 °C to +85 °C
  • Dimensions (H x L x W): 30mm x 60mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Female M12, 4-pin, angled, A-coded connector
  • Screw-type terminals for secure wiring
  • Connector material made of durable PBT
  • Locking nut made of CuZn for reliable connection
  • IP67 rated enclosure for dust and water protection
  • Operating temperature range from -40°C to +85°C
  • Supports current loading up to 4 A
  • Permitted cable diameter from 4 mm to 6 mm
  • UL File No. E335179 certified
Professional Installation Requirements
  • Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial automation and sensor connectivity
  • Machine building and factory automation
  • Harsh environment electrical connections requiring IP67 protection
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable materials and IP67 rating ensure long product life reducing waste
  • Compliant with China RoHS for reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK DOS-1204-W connector is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
