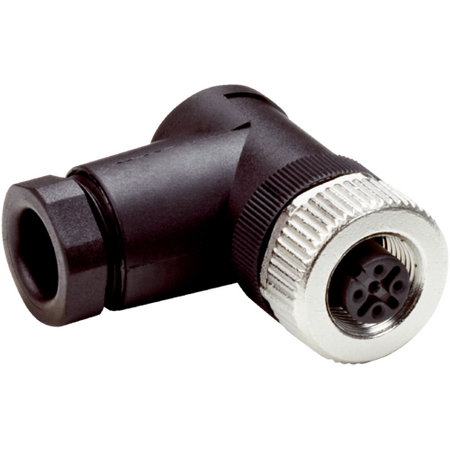

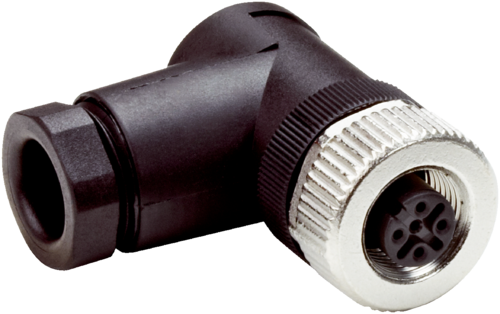

M12 Female Connector 5-Pin Angled IP67 Rated PBT Material SICK

BRAND: SICK
SKU: 6047951
$41.40 List price: $52.00
+ −
30 Days Return Electricians Unlock Trade Access
The M12 Female Connector 5-Pin Angled is designed for robust industrial automation and sensor connectivity.

Alternatively Known As: M12 Female Connector, 5-pin M12 Connector, Angled M12 Connector, Industrial Sensor Connector

Technical Specifications
  • Connection type head A: Female connector, M12, 5-pin, angled, A-coded
  • Connector material: PBT
  • Connector color: Black
  • Locking nut material: CuZn
  • Tightening torque: 0.6 Nm
  • Shielding: Unshielded
  • Permitted cable diameter: 6 mm to 8 mm
  • Reference voltage: ≤ 63 V
  • Current loading: ≤ 4 A
  • Test voltage: 1.0 kV eff/60 s, insulation group C to VDE 0110
  • UL File No.: E335179
  • Enclosure rating: IP67
  • Operating temperature: -25 °C to +90 °C
  • Dimensions (H x L x W): 30mm x 40mm x 20mm
  • Weight: 0.1 kg
Key Features
  • Female connector, M12, 5-pin, angled, A-coded
  • Connector material: PBT with CuZn locking nut
  • Unshielded design with IP67 enclosure rating
  • Operating temperature range from -25°C to +90°C
  • Tightening torque of 0.6 Nm for secure connection
  • Permitted cable diameter between 6 mm and 8 mm
Professional Installation Requirements
  • Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
  • Industrial automation and sensor connectivity
  • Machine building and factory automation
  • Harsh environment electrical connections requiring IP67 protection
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable materials reduce replacement frequency and waste
  • Compliant with China RoHS for reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.

Available Now

The SICK DOS-1205-WX female M12 connector is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
