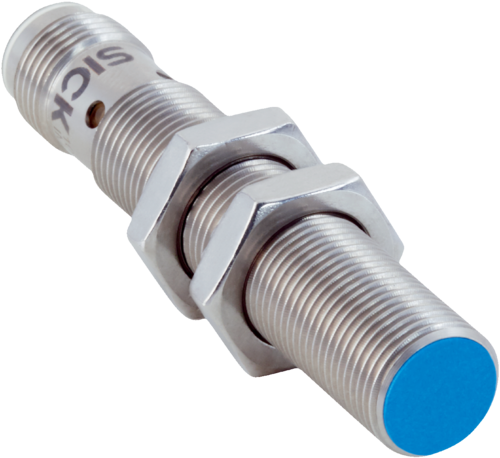

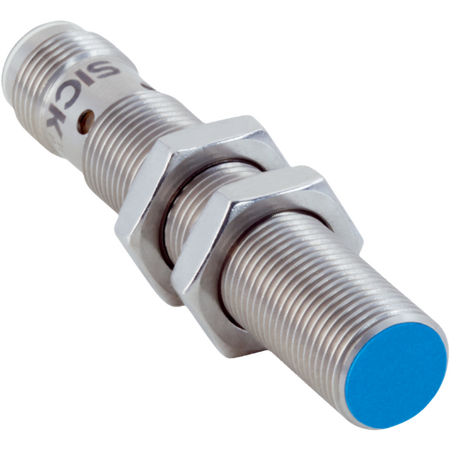

M12 Inductive Proximity Sensor IP68 & IP69K Rated 4mm Sensing Range Variant-2 SICK
The M12 Inductive Proximity Sensor is designed for robust sensing in challenging environments, featuring an IP68 and IP69K enclosure rating for high protection
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, normally open (NO)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP68, IP69K
- Shock resistance: 100 g, 11 ms shocks
- Vibration resistance: 25 g peak (10 Hz to 2000 Hz)
- Operating temperature range: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic LCP
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- Switching frequency of 2,000 Hz
- PNP switching output with NO output function
- DC 3-wire electrical wiring
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Includes mounting nut, brass, nickel-plated (2x)
- Shock and vibration resistant with high EMC immunity
- Wide ambient operating temperature from -40 °C to +100 °C
- Housing made of stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face made of plastic LCP
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic applications minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMS12-04BPSNC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation, mobile machinery, and hygienic environments.
