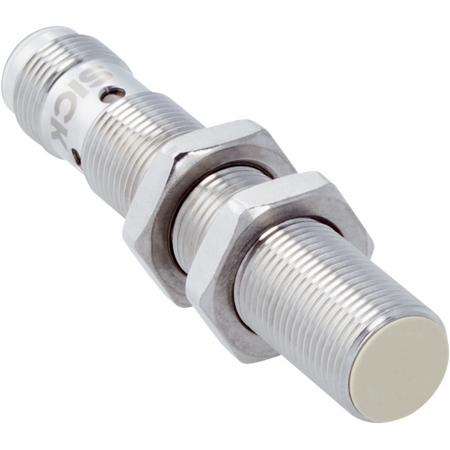

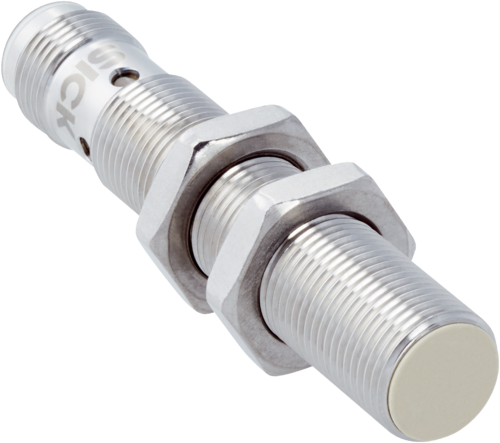

M12 Inductive Proximity Sensor PNP Output IP68 & IP69K Rated (4mm Sensing Range) SICK

BRAND: SICK
SKU: 1076674
$159.20 List price: $200.10
+ −
30 Days Return Electricians Unlock Trade Access
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation and hygienic zones.
Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Switching frequency: 2,000 Hz
  • Sensing range (Sn): 4 mm
  • Safe sensing range (Sa): 3.24 mm
  • Output function: Complementary PNP
  • Connection type: Male connector M12, 4-pin
  • Electrical wiring: DC 4-wire
  • Enclosure rating: IP68, IP69K
  • Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
  • Sensing face material: Plastic, LCP
  • Ambient operating temperature: -40 °C to +100 °C
  • Short-circuit and power-up pulse protection included
  • Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
  • Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
  • Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
  • Dimensions (H x L x W): 12mm x 65mm x 12mm
  • Weight: 0.1 kg
Key Features
  • Standard design housing with M12 x 1 thread size
  • Flush installation type with 4 mm sensing range
  • High switching frequency of 2,000 Hz
  • PNP complementary switching output with DC 4-wire electrical wiring
  • IP68 and IP69K rated enclosure for protection against dust and high-pressure washdown
  • Resistant to cleaning agents and temperature resistant
  • Equipped with IO-Link communication interface
  • Shock and vibration resistant with high durability
  • Includes mounting nuts made of V4A stainless steel
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connection compliance.
Applications
  • Hygienic and washdown zones
  • Difficult application conditions requiring robust sensing
  • Industrial automation requiring reliable object detection
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable stainless steel housing reduces replacement frequency and waste
  • Resistant to cleaning agents enabling hygienic maintenance without damage
  • Energy-efficient sensor operation reduces power consumption
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

The SICK IMF12-04BPPNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
