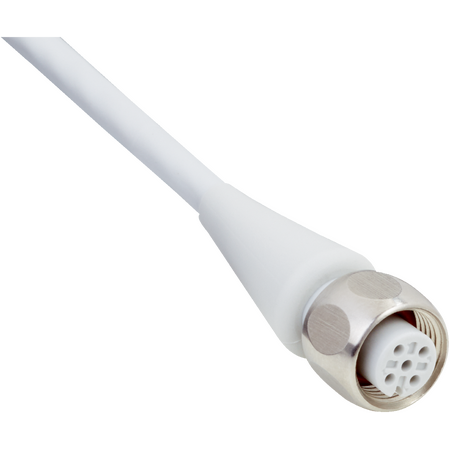

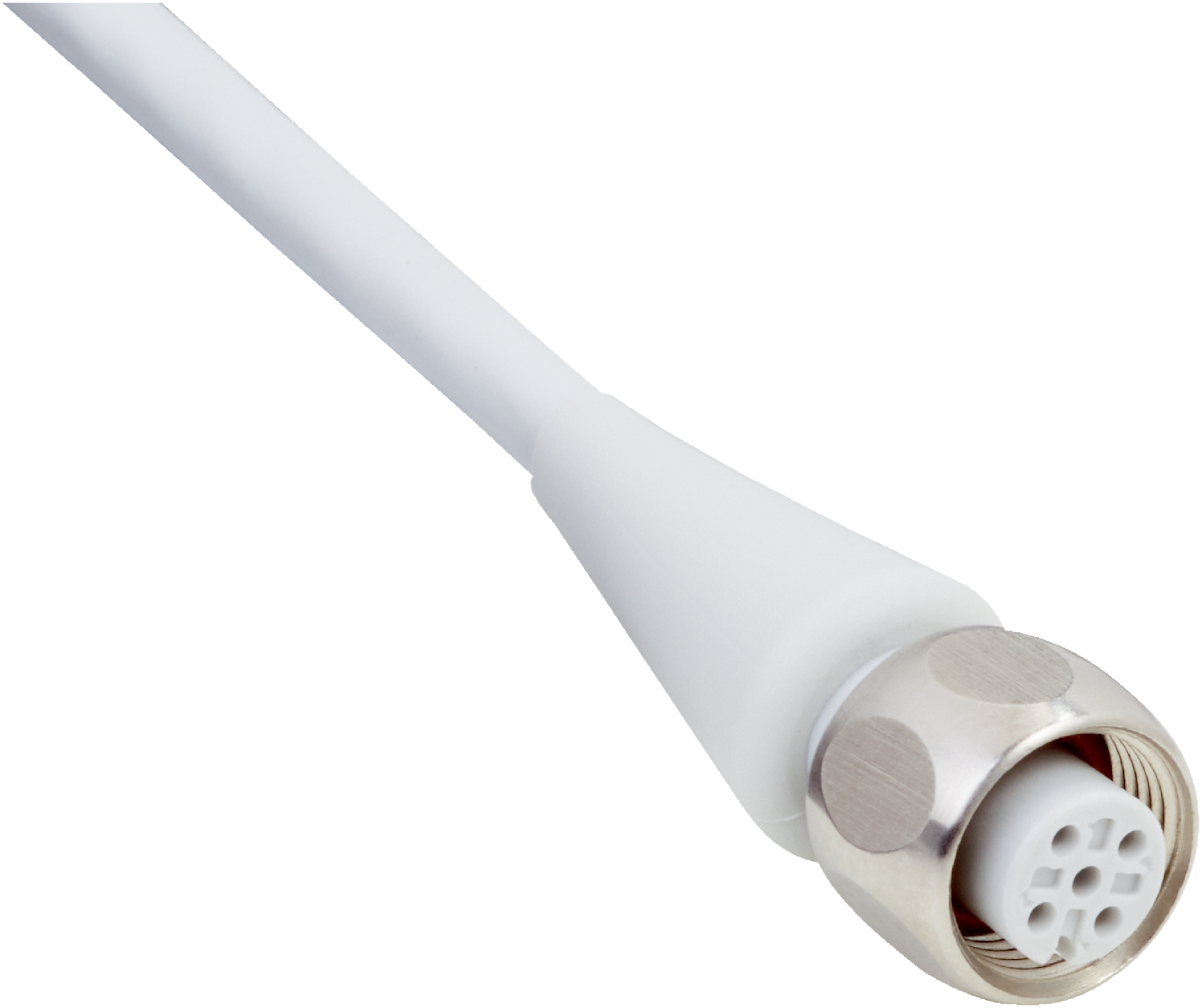

M12 Sensor Cable 5-Pin Female Connector IP67 IP69K Rated SICK
The M12 Sensor Cable is designed for reliable connections in industrial automation and robotics, featuring a 5-pin female connector and a robust 5m length.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 Female, SICK Sensor Cable, Industrial Sensor Cable, IP69K Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight
- Connection type head B: Flying leads
- Connector material: Polypropylene (PP)
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 1 Nm
- Cable length: 5 m
- Cable type: 5-wire, PP jacket
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: -25°C to +105°C (flexible use), -40°C to +105°C (stationary)
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° per meter
- Enclosure rating: IP67 / IP69K
- Bending cycles: ≥ 4,000,000
- Dimensions (H x L x W): 14mm x 5000mm x 14mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, straight
- Flying leads connection
- Connector material: PP with stainless steel locking nut
- Cable length: 5 m, 5-wire, PP jacket
- Operating temperature range: -25°C to +105°C (flexible use), -40°C to +105°C (stationary)
- IP67 / IP69K enclosure rating
- Torsion force: 180° per meter
- Bending cycles ≥ 4,000,000
- Resistant to chemical cleaning agents including lactic acid and hydrogen peroxide
- Unshielded cable with 0.34 mm² conductor cross section
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with sensor and actuator cabling to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Drag chain operation
- Robotics
- Cold bending resistant applications
- Seawater resistant environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements, minimizing waste
- Durable design supports long service life, reducing environmental impact
- Compliance with ECOLAB standards ensures suitability for hygienic and environmentally sensitive applications
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-1205-G05MRN sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and hygienic zone applications.
