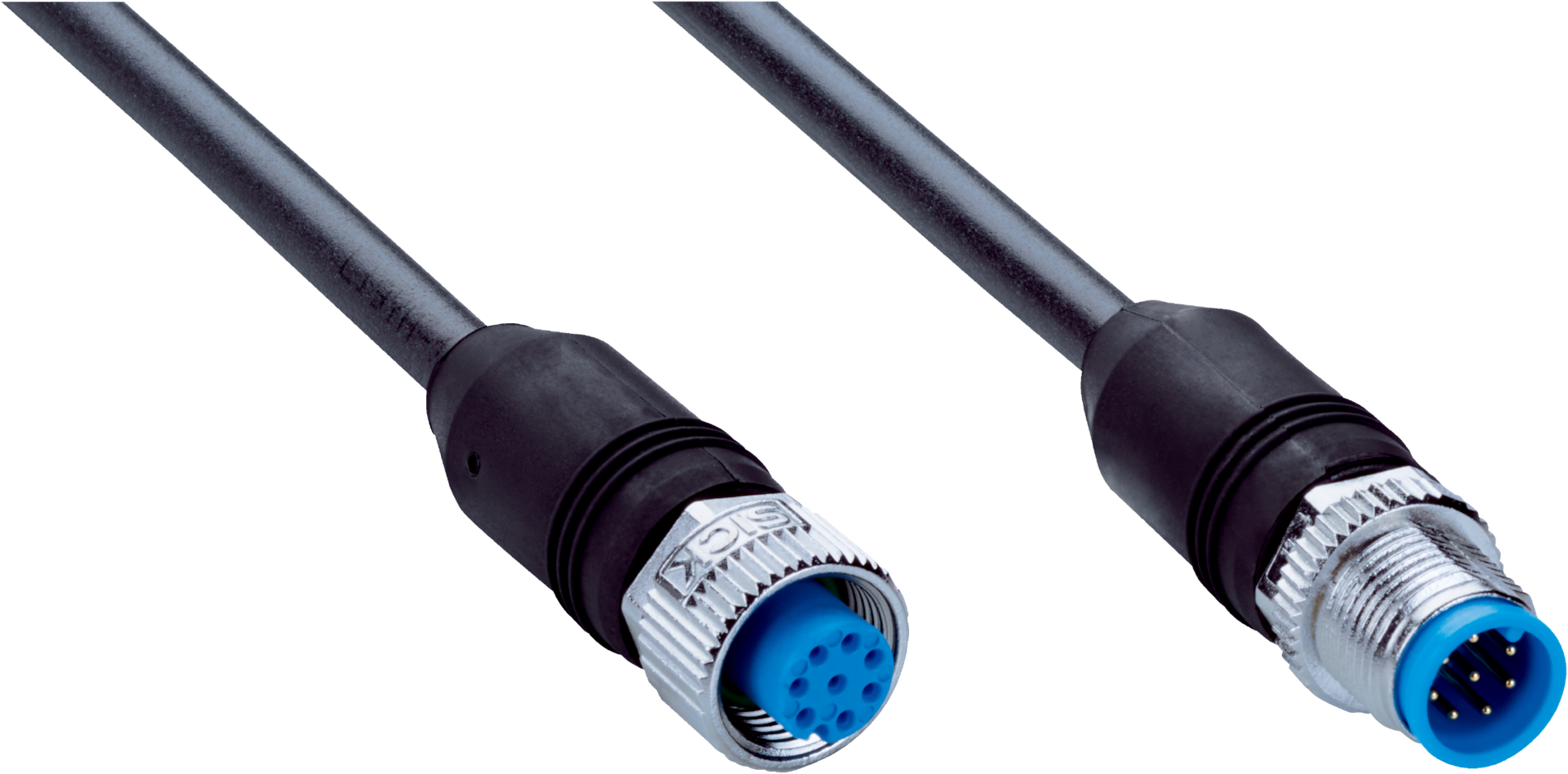

M12 Sensor Cable | 8-Pin Female & Male Connectors | IP65/IP67 Rated | by SICK
The M12 Sensor Cable features 8-pin female and male connectors, designed for reliable connections in industrial automation and robotics. With a durable PUR jacket and an IP65/IP67 enclosure rating, this cable is perfect for drag chain operations and environments with oils and lubricants, ensuring optimal performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 8-pin, PUR Cable Sensor Connector, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Male connector, M12, 8-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 0.6 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Traversing speed: 3 m/s
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 600mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded on head A
- Male connector, M12, 8-pin, straight, A-coded on head B
- Screw connection locking plug connector
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- Cable length 0.6 m, 8-wire, PUR, halogen-free jacket
- Cable diameter 5.8 mm, conductor cross section 0.25 mm²
- Unshielded cable
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- UL File No. E335179
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

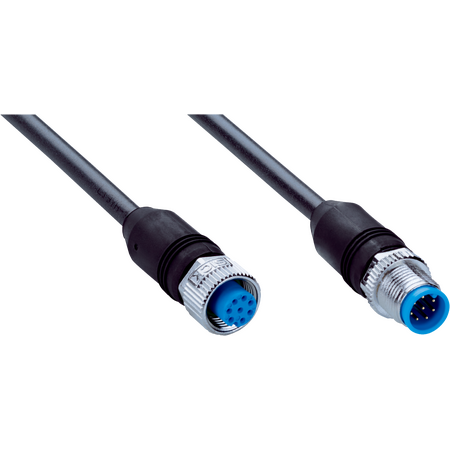

The SICK YF2A18-C60UA5M2A18 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
