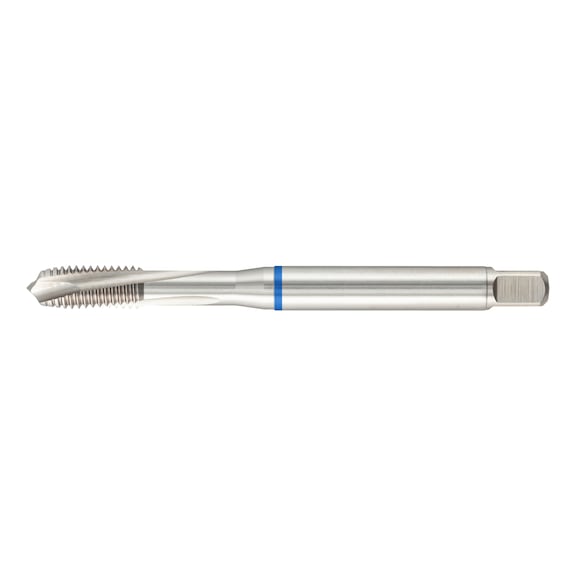

M14 Metric Thread Cutter Tap | Left-Hand Spiral & Long Service Life | Steel Cutting | by Wurth
The M14 Metric Thread Cutter Tap is designed for precision machining of general structural and non-alloyed tempering steels. Featuring a newly developed geometry that combines a left-hand spiral and spiral point tap, this tool offers up to 30% longer service life compared to conventional taps. Ideal for use in milling/drill centers and pedestal drilling machines, it ensures optimal performance and safety when used by trained professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M14 Metric Thread Cutter Tap | Left-Hand Spiral & Long Service Life | Steel Cutting | by Wurth
Brand: Wurth
SKU: 653701400
Alternatively Known As: Thread cutter tap, Metric thread tap M14, Steel thread cutter, Machine tap for steel
Technical Specifications
- Thread type: Metric thread
- Material to be processed: Steel
- Hole type: Clearance hole approx. 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Thread type x nominal diameter: M14
- Pitch: 2.0 mm
- Length: 110 mm
- Shank diameter: 11.0 mm
- Size of square: 9.0 mm
- DIN: 376
- Cutting material: HSCo
- Surface: Plain
- Form: D
- Core hole diameter: 12.0 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2X (6HX)
- Suitable for tensile strength up to: 1200 N/mm²
- Service life (points system): 3 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 3 of 4 points
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 110mm x 110mm x 14mm
- Weight: 0.3 kg
Key Features
- Newly developed geometry combining a left-hand spiral and a spiral point tap
- Homogenised surface structure due to state-of-the-art finishing process
- Up to 30% longer service life compared to conventional plain machine taps
- Cutting edge geometry precisely tailored to steel materials
- Product packaging made from 100% PCR (recycled plastic from household waste) and 100% recyclable
Professional Installation Requirements
- Use by trained machinists or professionals familiar with machine tapping processes is recommended for optimal performance and safety.
Applications
- Machining general structural steels
- Non-alloyed tempering steels
- Suitable for milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% recycled plastic and is fully recyclable, reducing environmental impact.
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth M14 Metric Thread Cutter Tap is available now for immediate purchase. Ideal for machining applications in general structural and tempering steels.
