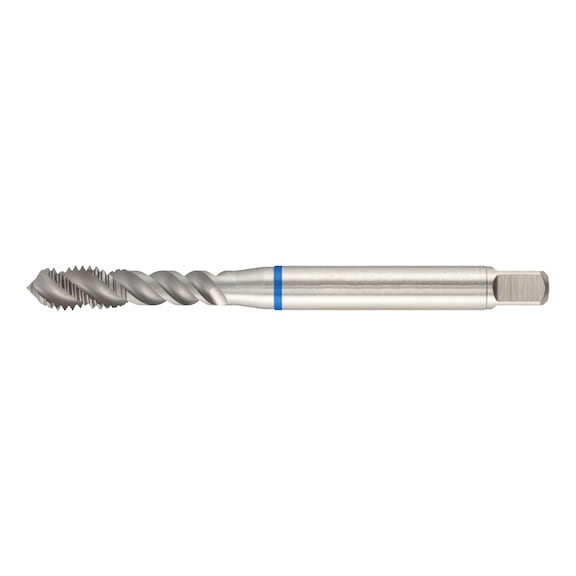

M14 Metric Thread Cutter | Vario Geometry | Enhanced Cutting Edge | 30% Longer Service Life | by Wurth
The M14 Metric Thread Cutter is designed for precision threading in steel materials, featuring newly developed Vario geometry for optimized cutting and a multi-stage finishing process for enhanced edge preparation. Ideal for trained machinists, this tool ensures reliable performance in milling and drilling applications, making it a must-have for professionals in the machining industry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M14 Metric Thread Cutter | Vario Geometry | Enhanced Cutting Edge | 30% Longer Service Life | by Wurth
Brand: Wurth
SKU: 653801400
Alternatively Known As: Metric Thread Cutter M14, Steel Thread Tap, Machine Tap M14, Threading Tool for Steel
Technical Specifications
- Thread type: Metric thread
- Material to be processed: Steel
- Hole type: Blind hole approx. 2.5xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Thread type x nominal diameter: M14
- Pitch: 2.0 mm
- Length: 110 mm
- Shank diameter: 11.0 mm
- Size of square: 9.0 mm
- DIN: 376
- Cutting material: HSCo
- Surface: Plain
- Form: C
- Core hole diameter: 12.0 mm
- Twist angle: 45° Vario
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2X (6HX)
- Suitable for tensile strength up to: 1200 N/mm²
- Service life (points system): 3 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 3 of 4 points
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 110mm x 110mm x 14mm
- Weight: 0.1 kg
Key Features
- Newly developed Vario geometry for optimized cutting
- Multi-stage finishing process for enhanced cutting edge preparation
- Angled threaded part for precise threading
- Cutting edge geometry tailored specifically for steel materials
- Up to 30% longer service life compared to conventional plain machine taps
- Exclusive availability from Wurth
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- Use by trained machinists or professionals experienced with thread cutting tools is recommended for optimal performance and safety.
Applications
- Machining: Milling/drill centers, pedestal drilling machines
- Thread cutting in general structural steels and non-alloyed tempering steels
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth M14 Metric Thread Cutter is available for immediate purchase, ideal for machining and threading applications in steel materials.
