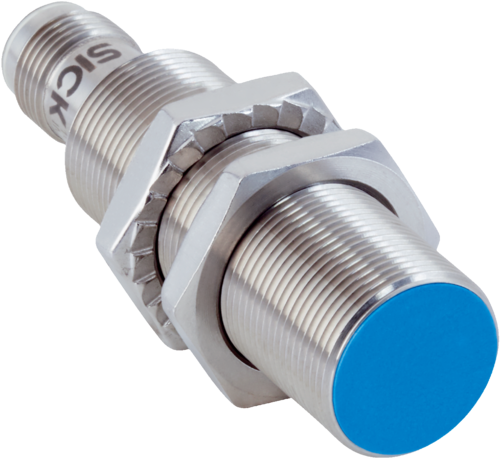

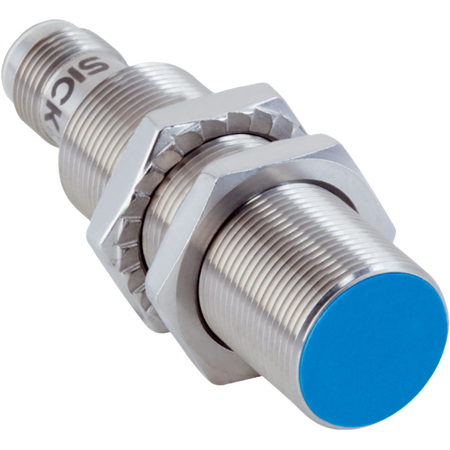

M18 Inductive Proximity Sensor 8mm Sensing Range IP68 & IP69K Rated (PNP Output) SICK
The M18 Inductive Proximity Sensor is designed for reliable object detection in industrial automation
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M18 Inductive Proximity Sensor, SICK IMB18 Sensor, M18 Inductive Sensor PNP, IO-Link Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Protection class: III
- Switching output: PNP complementary
- Connection type: Male connector M12, 4-pin
- Switching frequency: 1,000 Hz
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 65mm x 65mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Quasi-flush installation type
- Switching frequency of 1,000 Hz with PNP complementary output
- Male connector M12, 4-pin connection type
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant with high durability
- Short-circuit and power-up pulse protection included
- Communication interface IO-Link V1.0 with COM2 (38.4 kBaud)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting, ensuring proper torque and environmental sealing.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- Energy-efficient operation minimizes power consumption
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMB18-08BPPVC0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
