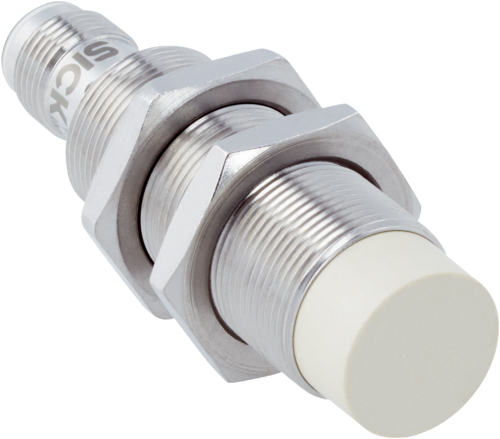

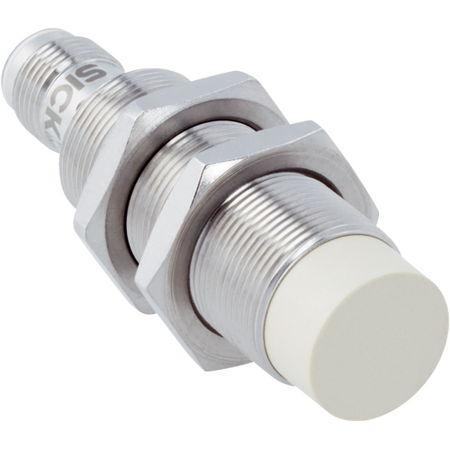

M18 Inductive Proximity Sensor Non-Flush Design 12mm Sensing Range Variant-1 SICK

BRAND: SICK
SKU: 1076666
$165.10 List price: $207.60
+ −
30 Days Return Electricians Unlock Trade Access
The M18 Inductive Proximity Sensor is designed for robust industrial automation applications, featuring a non-flush installation type and a sensing range of 12 mm.
Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Ripple: ≤ 10%
  • Voltage drop: ≤ 2 V
  • Hysteresis: 3% to 20%
  • Reproducibility: ≤ 2%
  • Temperature drift of sensing range: ±10%
  • Continuous current Ia: ≤ 200 mA
  • No load current: ≤ 10 mA
  • Short-circuit and power-up pulse protection included
  • Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
  • Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
  • Ambient operating temperature: -40 °C to +100 °C
  • Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
  • Sensing face material: Plastic, LCP
  • Protection class: III
  • Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
  • Process data length: 1 Byte
  • Dimensions (H x L x W): 65mm x 65mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Standard design housing with M18 x 1 thread size
  • Non-flush installation type
  • Sensing range of 12 mm with safe sensing range of 9.72 mm
  • Switching frequency up to 1,000 Hz
  • PNP switching output with normally open function
  • Male connector M12, 4-pin connection
  • Enclosure rating IP68 and IP69K for high protection
  • Resistant to cleaning agents and temperature resistant
  • Visual adjustment indicator and IO-Link communication interface
  • Shock and vibration resistant with high durability
  • Stainless steel V4A housing and plastic sensing face
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure correct mounting torque and proper electrical connection using the M12 connector.
Applications
  • Hygienic and washdown zones
  • Difficult application conditions requiring robust sensing
  • Industrial automation requiring non-flush inductive sensing
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable stainless steel housing reduces replacement frequency and waste
  • Energy-efficient operation with low power consumption
  • Resistant to harsh cleaning agents reducing environmental contamination
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

The SICK IMF18-12NPSNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
