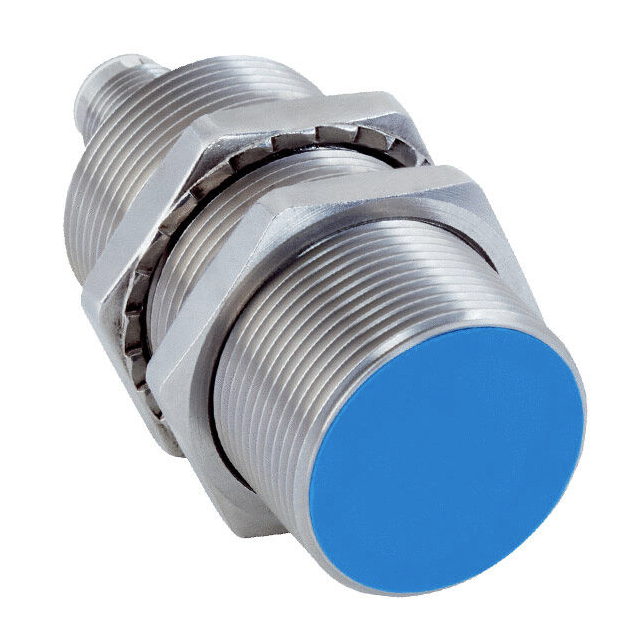

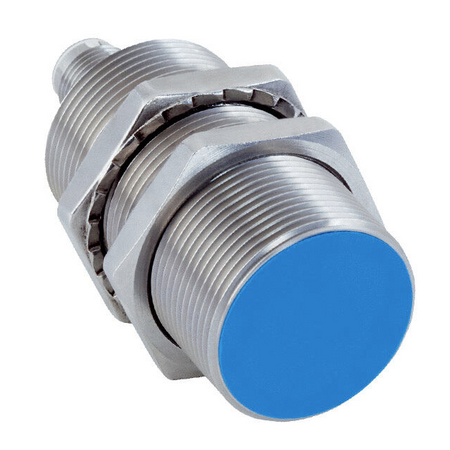

M18 Inductive Proximity Sensor Non-Flush Installation 12mm Sensing Range SICK
The M18 Inductive Proximity Sensor is designed for reliable object detection in industrial automation and mobile machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M18 Inductive Proximity Sensor, Non-flush Inductive Sensor, PNP Inductive Sensor, IO-Link Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud), 1 Byte process data
- Dimensions (H x L x W): 45mm x 45mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Non-flush installation type
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- Switching frequency up to 1,000 Hz
- PNP normally open switching output with DC 3-wire electrical wiring
- IP68 and IP69K rated enclosure for high protection
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
- Communication interface IO-Link V1.0 with COM2 (38.4 kBaud)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting torque and electrical connections according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Mobile machines operating in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB18-12NPSVC0K inductive sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications requiring reliable object detection in harsh environments.
