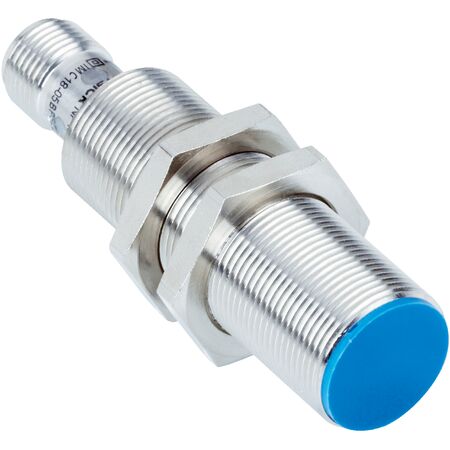

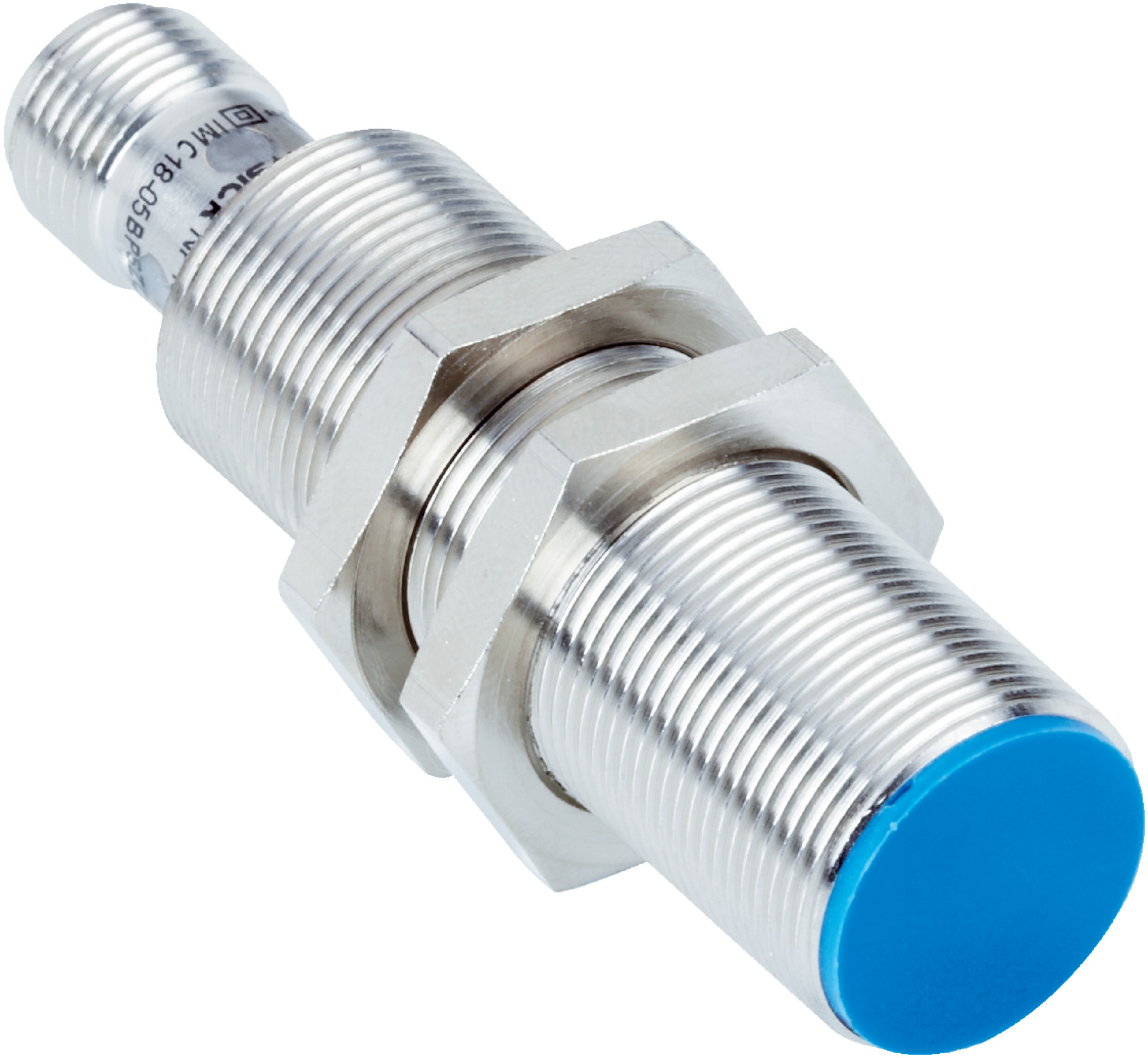

M18 Speed Sensor | IP67 Rated | Adjustable Speed & Acceleration | PNP Output | by SICK
The M18 Speed Sensor is designed for precise speed and acceleration monitoring in industrial automation. With an adjustable speed range of 6 to 12,000 pulses/min and a safe sensing range of 5.6 mm, it ensures reliable performance in machine safety and control systems. Featuring an IP67 rated enclosure for dust and water protection, this sensor is built to withstand harsh environments, making it ideal for manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 69mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Sensing range of 7 mm with safe sensing range of 5.6 mm
- Flush installation type with male M12 4-pin connector
- PNP switching output with pulse output corresponding to activation rate
- Adjustable speed range from 6 to 12,000 pulses/min
- Adjustable acceleration range from 0.1 to 2 pulses/s²
- Time delay configurable with multiple modes
- IP67 rated enclosure for dust and water protection
- Includes mounting nuts, brass nickel-plated
- Shock and vibration resistant up to 30 g
- Communication via IO-Link V1.0 with 5 ms cycle time
- LED indicators for status (yellow and blue)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting, wiring, and configuration according to industrial safety standards.
Applications
- Industrial automation for speed and acceleration monitoring
- Machine safety and control systems
- Process monitoring in manufacturing environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable brass nickel-plated housing extends product life reducing waste
- Energy efficient operation with low voltage and current consumption
- Reliable sensing reduces machine downtime and resource waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMC18-07BPDZC0SA05 speed monitor sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
