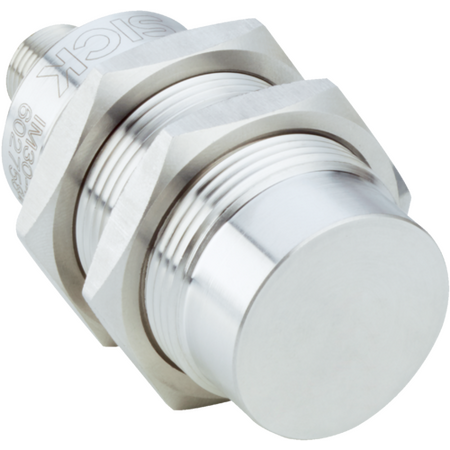

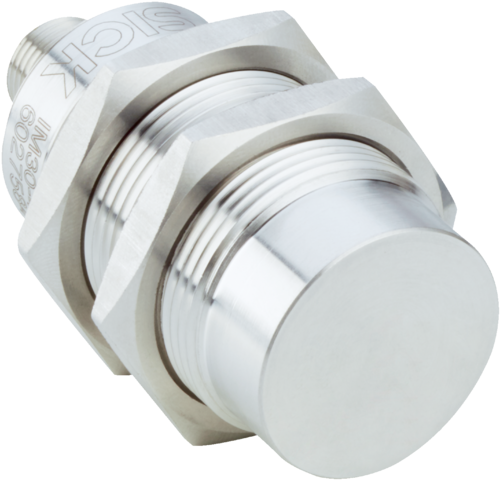

M30 Non-flush Proximity Sensor IP68 & IP69K Rated 40mm Sensing Range SICK
The M30 Non-flush Proximity Sensor is designed for robust industrial applications, featuring a 40mm sensing range and IP68 IP69K enclosure ratings for high
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M30 x 1.5 thread
- Diameter: 30 mm
- Pressure resistance: ≤ 40 bar
- Sensing range Sn: 40 mm
- Safe sensing range Sa: 32.4 mm
- Installation type: Non-flush
- Switching frequency: 90 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 40 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift: ≤ 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -25°C to +85°C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 63.5mm x 63.5mm x 30mm
- Weight: 0.2 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Pressure resistance up to 40 bar
- Sensing range of 40 mm with safe sensing range of 32.4 mm
- Non-flush installation type
- Switching frequency of 90 Hz with PNP normally open output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A resistant to cleaning agents
- Triple sensing range and visual adjustment indicator
- Supports IO-Link communication interface
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature from -25°C to +85°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation with non-flush sensor installation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- Resistant to cleaning agents, supporting hygienic environments and reducing chemical waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IM30-40NPS-NC1 sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
