M40E-034003RB0 | Safety light-beam sensors

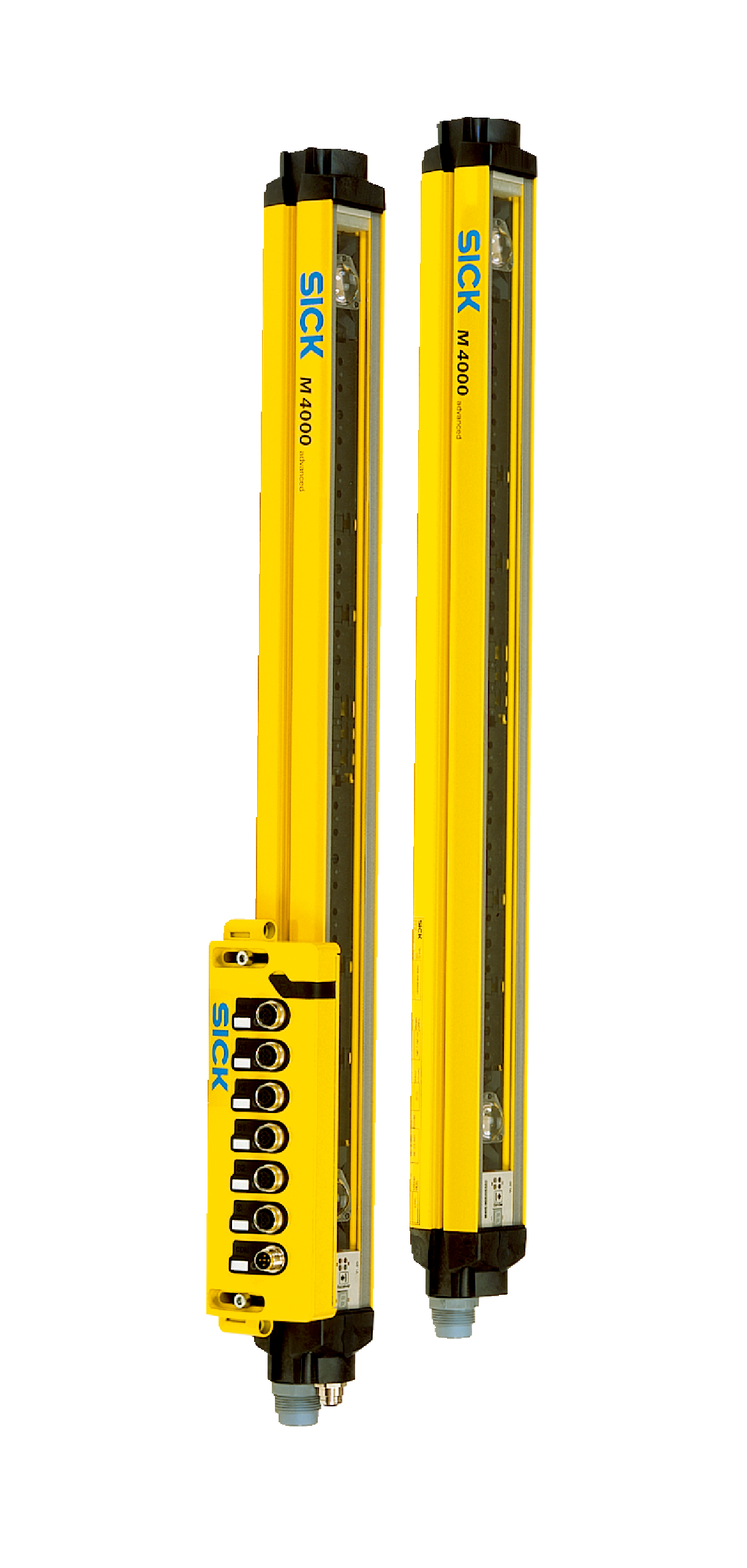

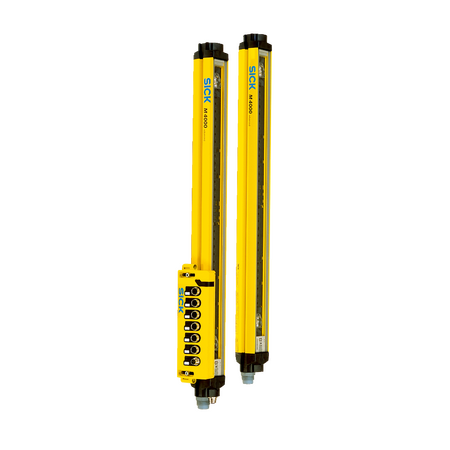

The SICK M40E-034003RB0 is a Type 4 safety light-beam sensor receiver designed for industrial safety applications, offering configurable scanning ranges, fast response, and advanced muting functions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40E-034003RB0 | Safety light-beam sensors
Brand: SICK
SKU: 1200064
Alternatively Known As: Safety light beam sensor receiver, M40E safety sensor, SICK light curtain receiver, industrial safety sensor
Technical Specifications
- Functional principle: Sender/receiver
- System part: Receiver
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 3
- Beam separation: 400 mm
- Response time: 10 ms
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Beam coding, restart interlock, external device monitoring, sender test, configurable diagnostics
- System connection: Hirschmann male connector M26, 12-pin
- Permitted cable length: 50 m
- Configuration connection: Female connector M8, 4-pin
- Configuration method: PC with CDS software
- Display elements: LEDs and 7-segment display
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
- Housing material: Aluminum alloy ALMGSI 0.5, powder coated
- Front screen: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 55mm x 150mm x 52mm
- Weight: 1.2 kg
Key Features
- Type 4 safety light-beam sensor receiver with 3 beams and 400 mm beam separation
- Configurable scanning range from 0.5 m to 70 m
- Optical synchronization with sender
- Fast response time of 10 ms
- Flexible, configurable 4-signal muting for differentiation between man and material
- LED and 7-segment display for status indication
- Short-circuit protected, cross-circuit monitored PNP output signal switching devices
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient electronics
- Durable aluminum housing with powder coating for long service life
- IP65 rated enclosure protects against dust and water ingress
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK M40E-034003RB0 Safety Light-Beam Sensor Receiver is available for immediate purchase, ideal for industrial safety and automation applications.
