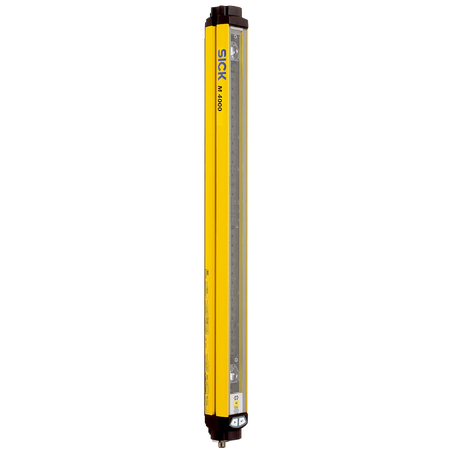

M40E-034510RR0 | Safety light-beam sensors
The SICK M40E-034510RR0 is a Type 4 safety light-beam sensor receiver designed for industrial safety applications, offering configurable scanning ranges up to 70 meters, high safety integrity, and robust IP65-rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40E-034510RR0 | Safety light-beam sensors
Brand: SICK
SKU: 1200031
Alternatively Known As: Safety light beam sensor receiver, Safety light curtain receiver, Industrial safety sensor, Optical safety sensor
Technical Specifications
- Dimensions (H x L x W): 55mm x 100mm x 52mm
- Weight: 1.2 kg
Key Features
- Type 4 safety light-beam sensor receiver with 3 beams and 450 mm beam separation
- Configurable scanning range from 0.5 m to 70 m
- Optical synchronization with integrated laser alignment aid
- High safety integrity level SIL 3 and performance level PL e
- Short response time of 10 ms
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for dust and water protection
- LED and 7-segment display for configuration and status indication
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper configuration.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable powder-coated aluminum housing extends product life reducing waste
- Low power consumption (≤ 0.6 A) minimizes energy use
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK M40E-034510RR0 Safety Light-Beam Sensor Receiver is available for immediate purchase, ideal for industrial safety and automation applications.
