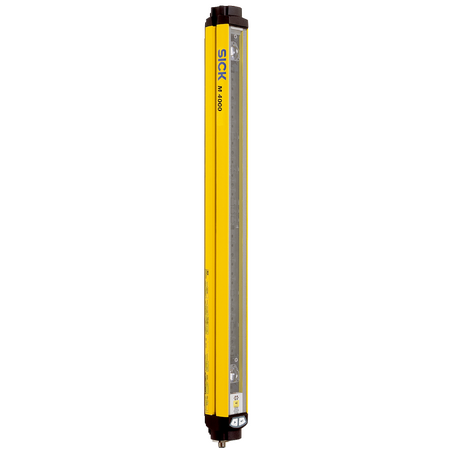

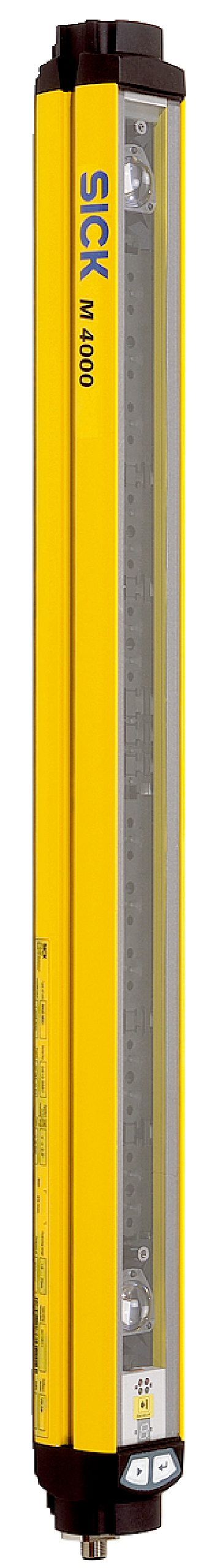

M40S-034000ER0 | Safety light-beam sensors
The SICK M40S-034000ER0 is a high-performance safety light-beam sensor designed for industrial safety applications, offering configurable scanning ranges, robust construction, and advanced safety certifications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40S-034000ER0 | Safety light-beam sensors
Brand: SICK
SKU: 1202684
Alternatively Known As: Safety light curtain sensor, safety beam sensor, industrial safety sensor, M40S safety sensor
Technical Specifications
- Functional principle: Sender/receiver
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 3
- Beam separation: 400 mm
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- System connection: Male connector M12, 8-pin
- Permitted cable length: 15 m
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.2 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 55mm x 120mm x 52mm
- Weight: 1.2 kg
Key Features
- Type 4 safety light-beam sensor with SIL 3 and PL e safety integrity levels
- Configurable scanning range from 0.5 m to 70 m
- Three beams with 400 mm beam separation and optical synchronization
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- LED and 7-segment display for configuration and status indication
- Protection class III and IP65 rated for harsh environments
- Shock and vibration resistant
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK M40S-034000ER0 Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
