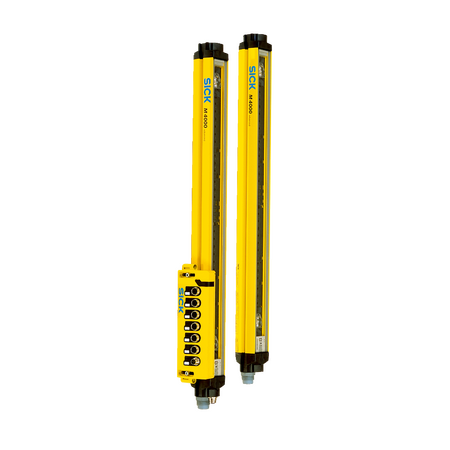

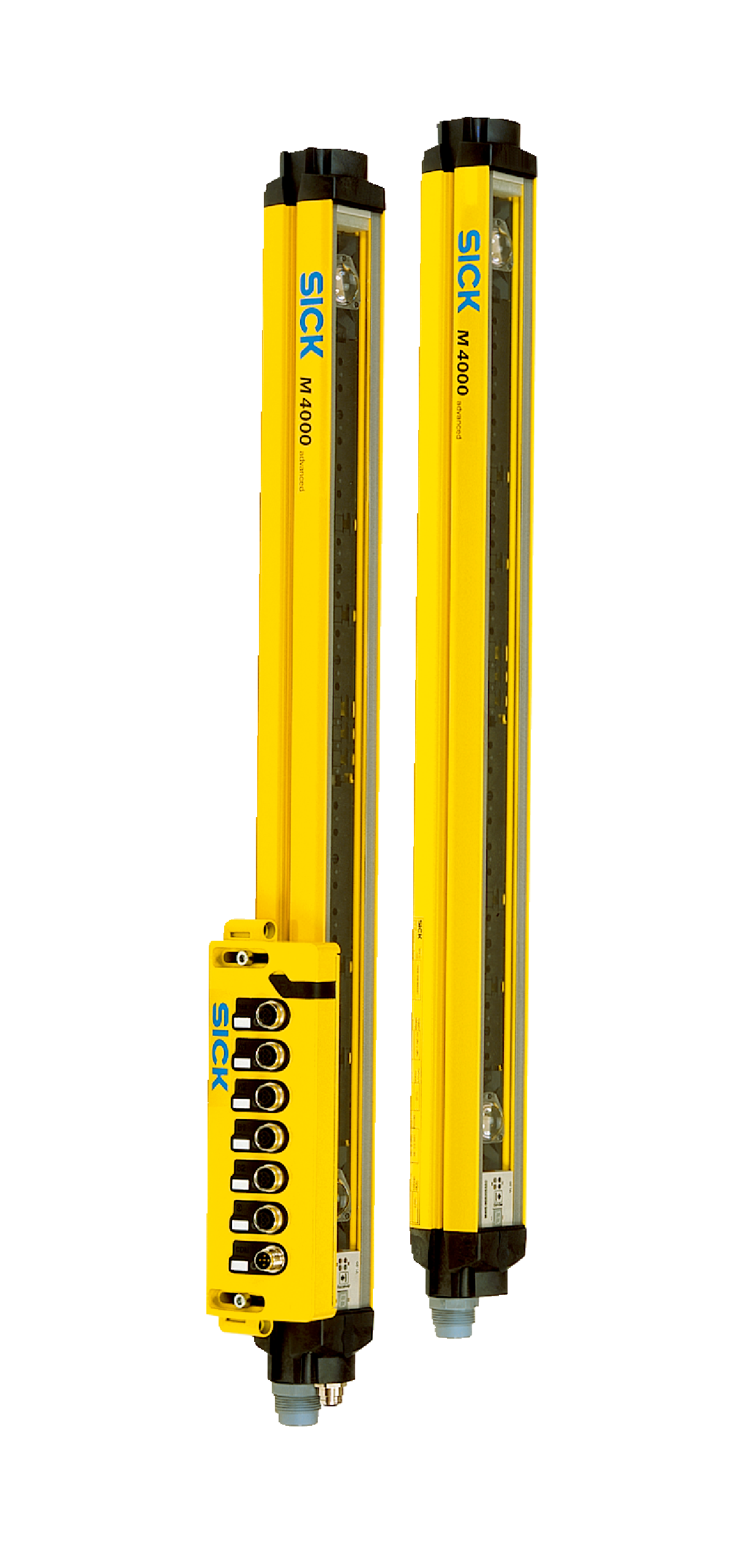

M40S-043003AA0 | Safety light-beam sensors
The SICK M40S-043003AA0 safety light-beam sensor offers high-performance industrial safety with configurable scanning ranges, multiple beams, and advanced safety features for reliable machine safeguarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40S-043003AA0 | Safety light-beam sensors
Brand: SICK
SKU: 1200073
Alternatively Known As: Safety light beam sensor, Safety light curtain sender, Industrial safety sensor, M40S safety sensor
Technical Specifications
- Functional principle: Sender/receiver
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 4
- Beam separation: 300 mm
- Response time: 10 ms
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- System connection: Hirschmann male connector M26, 12-pin
- Permitted cable length: 50 m
- Configuration connection: Female connector M8, 4-pin
- Configuration method: PC with CDS software
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.2 A
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 55mm x 100mm x 52mm
- Weight: 1.5 kg
Key Features
- Sender/receiver functional principle
- Configurable scanning range from 0.5 m to 70 m
- Four beams with 300 mm beam separation
- Response time of 10 ms
- Optical synchronization
- Type 4 safety (IEC 61496-1) with SIL 3 and PL e
- Flexible, configurable 4-signal muting for human-material differentiation
- LEDs and 7-segment display for status indication
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for harsh environments
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety monitoring
- Machine safeguarding
- Access control in hazardous areas
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
- Long mission time of 20 years reduces environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK M40S-043003AA0 safety light-beam sensor is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
