M40S-062200AR0 Safety light-beam sensors

BRAND: SICK
SKU: 1200008
$2,769.90 List price: $3,481.50
+ −
30 Days Return Electricians Unlock Trade Access

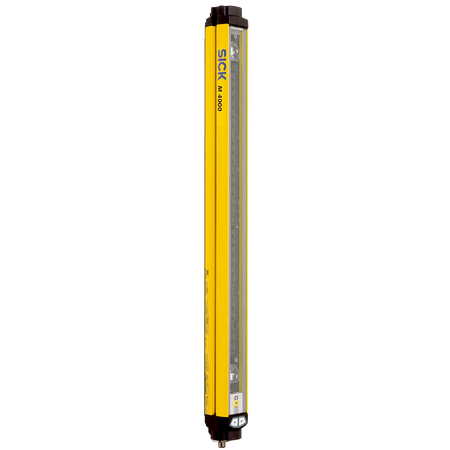

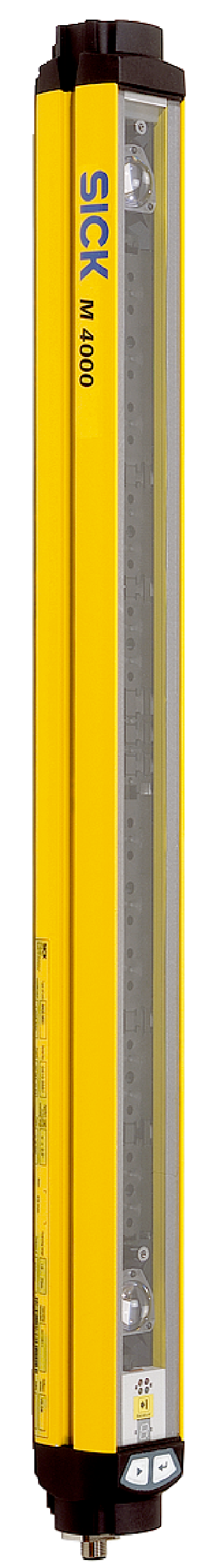

The SICK M40S-062200AR0 is a Type 4 safety light-beam sensor designed for industrial safety applications

Product Name/Title: M40S-062200AR0 | Safety light-beam sensors

Brand: SICK

SKU: 1200008

Alternatively Known As: Safety light beam sensor, Safety light curtain sender, Industrial safety sensor, Optical safety sensor

Technical Specifications
  • Dimensions (H x L x W): 55mm x 100mm x 52mm
  • Weight: 1.2 kg
Key Features
  • Type 4 safety light-beam sensor with SIL 3 and PL e safety integrity levels
  • Configurable scanning range from 0.5 m to 70 m
  • Six beams with 220 mm beam separation and optical synchronization
  • Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
  • LED and 7-segment display for configuration and status indication
  • Protection class III with power consumption ≤ 0.2 A
  • Operating temperature range from -30 °C to +55 °C
  • IP65 rated enclosure for dust and water protection
  • Shock resistance up to 10 g and vibration resistance up to 5 g
Professional Installation Requirements
  • Installation and configuration should be performed by qualified personnel familiar with safety sensor systems to ensure compliance with safety standards.
Applications
  • Industrial safety monitoring
  • Machine safeguarding
  • Access control in hazardous areas
  • Automation systems requiring presence detection
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
  • Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
  • Durable materials and robust design reduce replacement frequency and waste
  • Low power consumption contributes to energy efficiency
  • Complies with China RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK M40S-062200AR0 Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
