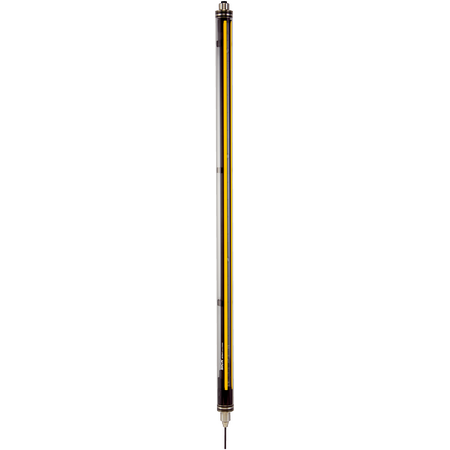

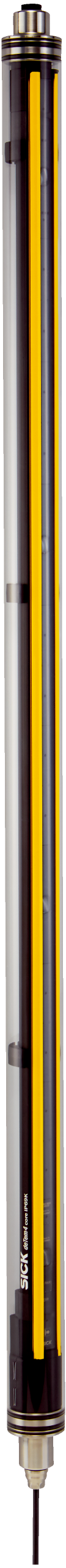

M4C-SB0430LA10 | Safety light-beam sensors
The SICK M4C-SB0430LA10 is a high-performance safety light-beam sensor designed for areas with special hygiene requirements, featuring IP69K protection and advanced safety certifications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M4C-SB0430LA10 | Safety light-beam sensors
Brand: SICK
SKU: 1089981
Alternatively Known As: Safety light beam sensor, Safety light curtain sender, deTem4 Core IP69K sensor, Industrial safety sensor
Technical Specifications
- Product version: deTem4 Core IP69K
- Functional principle: Sender/receiver
- System part: Sender
- Scanning range: Typical 0.5 m to 15.5 m
- Number of beams: 4
- Beam separation: 300 mm
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 1.44 W
- Protection class: III (IEC 61140)
- Enclosure rating: IP65, IP66, IP67, IP69K
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Cable: 5-wire PUR halogen-free, 15 m length
- Housing diameter: 50 mm
- Material: PMMA housing, stainless steel 1.4404 end caps and cable glands
- Dimensions (H x L x W): 50mm x 150mm x 50mm
- Weight: 2.29 kg
Key Features
- Type 4 safety sensor with SIL 3 and PL e performance levels
- Near-infrared (NIR), invisible light type
- 4 beams with 300 mm beam separation
- Optical synchronization
- IP69K protective housing suitable for harsh environments
- 15.5 m typical scanning range
- LED display elements for status indication
- Robust stainless steel end caps and cable glands
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Areas with special hygiene requirements
- Industrial safety monitoring
- Machine safeguarding
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP69K housing reduces need for frequent replacements
- Halogen-free PUR cable reduces environmental impact
- Energy-efficient operation with low power consumption (≤ 1.44 W)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK M4C-SB0430LA10 Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety and hygiene-critical applications.
