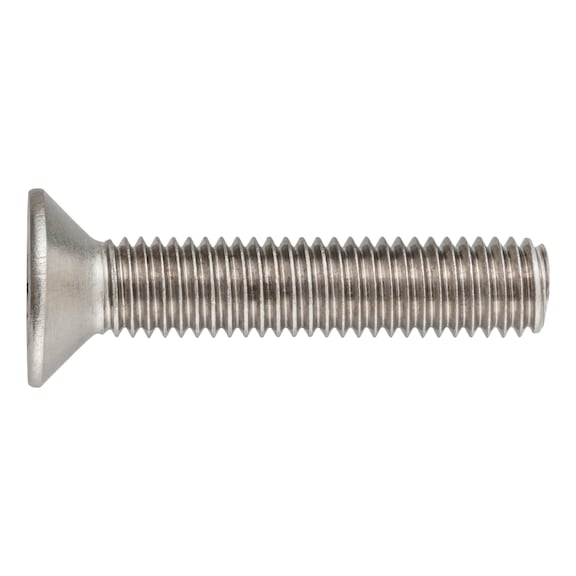

M5 Countersunk Hex Socket Bolt | Stainless Steel A4 | RoHS Compliant | by Wurth
The M5 Countersunk Hex Socket Bolt is crafted from stainless steel A4, ensuring excellent corrosion resistance and durability. With a flush surface finish and hexagon socket drive, it’s perfect for general fastening applications in automotive, construction, and industrial sectors. This bolt is RoHS-compliant, making it an environmentally safe choice for your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M5 Countersunk Hex Socket Bolt | Stainless Steel A4 | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 299512
Alternatively Known As: M5 Countersunk Hex Socket Bolt, Stainless Steel M5 Bolt, Hex Socket Screw M5, Metric Countersunk Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 12 mm
- Head diameter (dk): 10.07 mm
- Head height (k1): 3.1 mm
- Internal drive (s1): HS3 (Hexagon socket)
- Standards: ISO 10642
- Material: Stainless steel A4
- Property class: 070
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Hexagon socket
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: A
- Dimensions (H x L x W): 3.1mm x 12mm x 5mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A4 for excellent corrosion resistance
- Countersunk head design for flush surface finish
- Hexagon socket drive for secure tightening
- Full metric thread for strong fastening
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and secure fastening.
Applications
- General fastening applications in machinery and equipment
- Use in environments requiring corrosion resistance
- Suitable for assembly in automotive, construction, and industrial sectors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Stainless steel construction enhances product longevity reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M5 x 12mm Stainless Steel Countersunk Hex Socket Bolt is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
