M50 X 1.5 Nicote Barrier Cable Gland | IP66/68 Rated | Corrosion-Resistant Brass | Secure Seal by Cabac

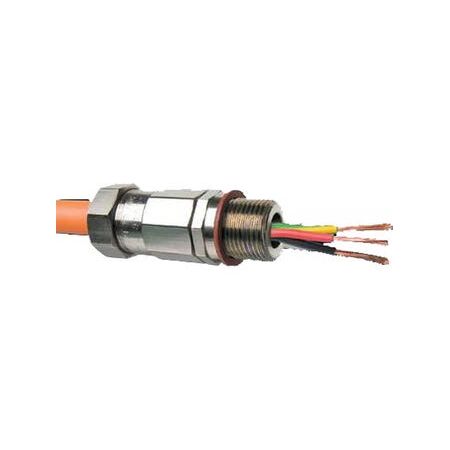

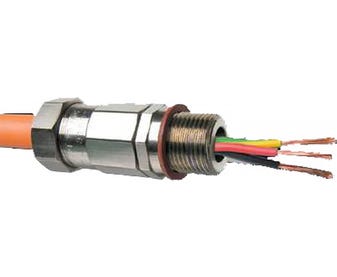

The M50 X 1.5 Nicote FLPW Barrier Cable Gland by Cabac is designed for steel wire armoured cables in hazardous areas, offering a barrier epoxy seal for cable cores and robust corrosion-resistant nickel-plated brass construction. Rated IP66/68 for indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M50 X 1.5 NICOTE BARRIER CABLE GLAND
Brand: Cabac
SKU: FLPW505B
Alternatively Known As: Nicote Barrier Gland, FLPW Barrier Cable Gland, SWA Cable Gland, Hazardous Area Cable Gland
Technical Specifications
- Material: Nickel-plated brass components
- Ingress Protection: IP66/68 (30m)
- Protection Class: Ex d I/IIC
- Compliance: ANZEx 11.2001X, IECEx SIM 11.0002X
- IEC Standards: 60079-0:2004, 60079-1:2007, 61241-0:2004, 61241-1:2004
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Barrier epoxy seal provides a secure seal for cable cores
- Armour clamp and outer sheath seal secure the armour and seal the outer sheath
- Constructed from corrosion-resistant nickel-plated brass
- Ingress Protection rated IP66/68 (30m)
Professional Installation Requirements
- Professional installation by qualified personnel trained in hazardous area equipment is required to ensure compliance and safety.
Applications
- Indoor and outdoor use in hazardous environments
- Steel wire armoured (SWA) cable installations requiring secure and safe connections
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel-plated brass construction reduces need for frequent replacements
- Seals prevent ingress of contaminants, enhancing cable longevity and reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The M50 X 1.5 Nicote FLPW Barrier Cable Gland is available for immediate purchase, ideal for hazardous area cable installations requiring secure and reliable sealing.
