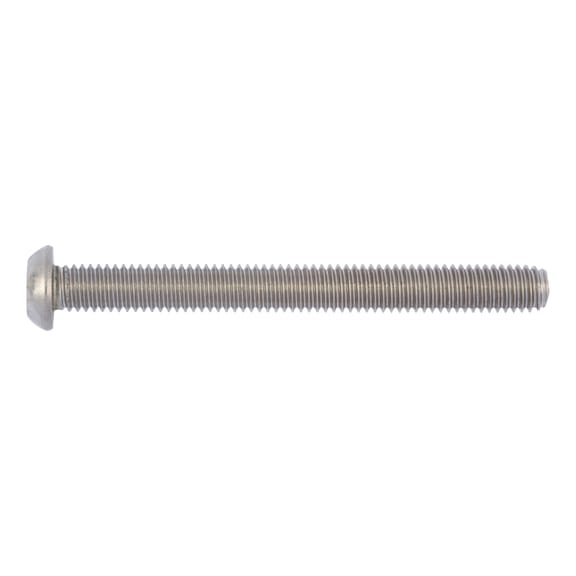

M6 Button Head Bolt | Stainless Steel A2 | TX30+P Drive | Corrosion Resistant | by Wurth
The M6 Button Head Bolt is crafted from stainless steel A2, ensuring exceptional corrosion resistance and durability. With a TX30+P internal drive and a low-profile button head design, this bolt is perfect for mechanical assemblies in automotive and construction applications. Ideal for both indoor and outdoor use, it meets RoHS compliance for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M6 Button Head Bolt | Stainless Steel A2 | TX30+P Drive | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 284620
Alternatively Known As: M6 Button Head Bolt, Stainless Steel Button Head Screw, TX30 Safety Pin Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length (l1): 20 mm
- Head diameter (dk): 10.5 mm
- Head height (k1): 3 mm
- Standards: ISO 7380-1 similar, CS
- Material: Stainless steel A2
- Property class: 070
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Button head
- Drive type: TX with safety pin
- Internal drive: TX30+P
- Thread type: Metric thread
- Pitch: 1 mm
- Thread form: Standard metric thread
- Dimensions (H x L x W): 3mm x 20mm x 6mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A2 for corrosion resistance
- Button head design for a smooth, low-profile finish
- TX30+P internal drive with safety pin for secure fastening
- Metric thread with 1 mm pitch for standard compatibility
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper torque and secure fastening.
Applications
- General fastening applications requiring corrosion resistance
- Mechanical assemblies in automotive, machinery, and construction
- Indoor and outdoor use where stainless steel fasteners are needed
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Stainless steel construction increases product lifespan, reducing waste
Warranty Information
Wurth provides standard warranty against manufacturing defects as per company policy.
Available Now
The Wurth M6 x 20mm Stainless Steel Button Head Bolt TX30+P is available for immediate purchase, ideal for mechanical and construction fastening applications.
