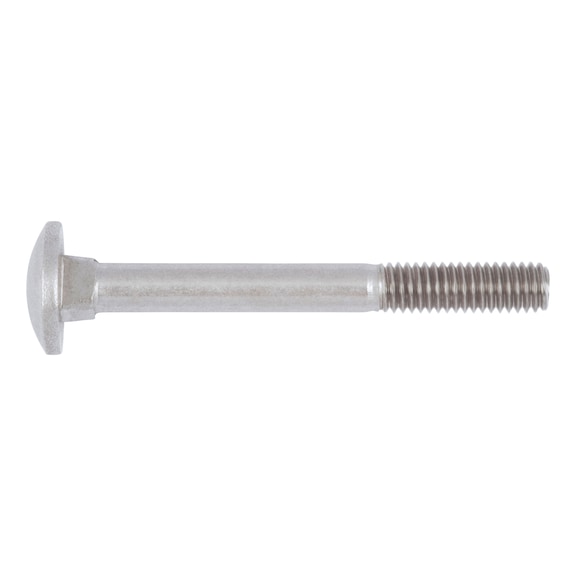

M6 Cup Head Square Neck Bolt | Stainless Steel A2 | RoHS Compliant | by Wurth
The M6 Cup Head Square Neck Bolt is crafted from durable stainless steel A2, ensuring corrosion resistance and longevity. With a unique flat square neck design, it allows for secure fastening in oval holes without the need to hold the screw. Ideal for mechanical assemblies, automotive repairs, and construction applications, this bolt is a reliable choice for professionals seeking quality and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M6 Cup Head Square Neck Bolt | Stainless Steel A2 | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 226670
Alternatively Known As: Square Neck Cup Head Bolt, M6 Cup Head Bolt, Stainless Steel Square Neck Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length (l1): 70 mm
- Material: Stainless steel A2
- Property class: 70
- Surface: Plain
- Head diameter (dk): 16.55 mm
- Head height (k1): 3.88 mm
- Square width (V): 6.48 mm
- Square height (f): 4.6 mm
- Standards: DIN 603
- RoHS-compliant: Yes
- Head type: Cup head square neck
- Thread type: Metric thread
- Pitch: 1 mm
- Thread form: Standard metric thread
- Shank diameter: 6 mm
- Thread length (metric thread) (b): 18 mm
- Product class: C
- Dimensions (H x L x W): 3.88mm x 70mm x 16.55mm
- Weight: 0.1 kg
Key Features
- Flat square neck fixes the round head screw in oval holes
- Allows tightening from the nut side without holding the screw
- Made from stainless steel A2 for corrosion resistance
- Cup head with square neck design
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive repairs and maintenance
- Construction and industrial equipment
- General fastening applications with oval holes
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel to reduce replacement frequency
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth M6 x 70mm Stainless Steel Cup Head Square Neck Bolt is available for immediate purchase, ideal for mechanical, automotive, and construction fastening applications.
