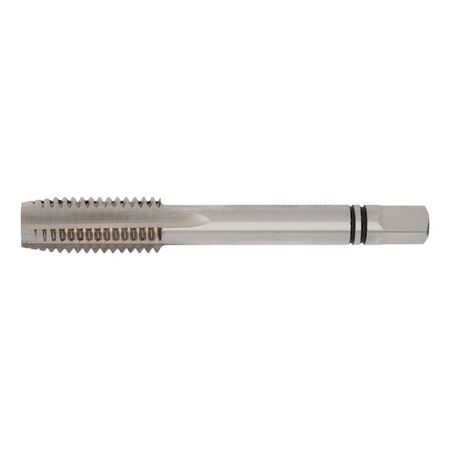

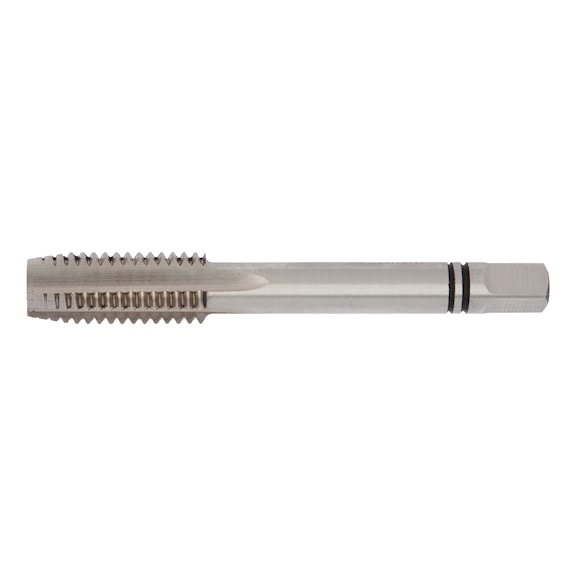

M7 Thread Tap | High-Speed Steel | Trim Cut Form D | DIN 352 Compliant | by Wurth
The M7 Thread Tap is crafted from high-speed steel (HSS) for durability and precision in threading applications. Designed for second tapping operations, it features a trim cut form D for accurate thread cutting. Ideal for machining metric ISO standard threads in steel, non-ferrous metals, and cast iron, this tap is perfect for both through and blind holes, ensuring reliable performance in various materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M7 Thread Tap | High-Speed Steel | Trim Cut Form D | DIN 352 Compliant | by Wurth
Brand: Wurth
SKU: 64027
Alternatively Known As: M7 Thread Tap, Metric Thread Cutter, HSS Tap, Second Tap M7
Technical Specifications
- Type description: Second tap
- Standards: DIN 352
- Thread type x nominal diameter: M7
- Pitch: 1.0 mm
- Length: 56 mm
- Thread length (metric thread): 19 mm
- Shank diameter: 6 mm
- Size of square: 4.9 mm
- Core hole diameter: 6.00 mm
- Material: High-Speed Steel (HSS)
- Thread type: Metric thread
- Dimensions (H x L x W): 56mm x 56mm x 6mm
- Weight: 0.1 kg
Key Features
- Trim cut form D for precise thread cutting
- Complies with DIN 13 for metric ISO standard threads
- High-speed steel (HSS) material for durability
- Designed for second tapping operations
Professional Installation Requirements
- No professional installation required; suitable for manual use by trained machinists.
Applications
- Machining: Producing metric ISO standard threads by hand
- Suitable for steel, non-ferrous metals, and cast iron materials up to 800 N/mm² strength
- Used in through holes and blind holes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable HSS material reduces tool replacement frequency, minimizing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth M7 HSS Second Tap is available now for immediate purchase. Ideal for precision threading in machining applications.
