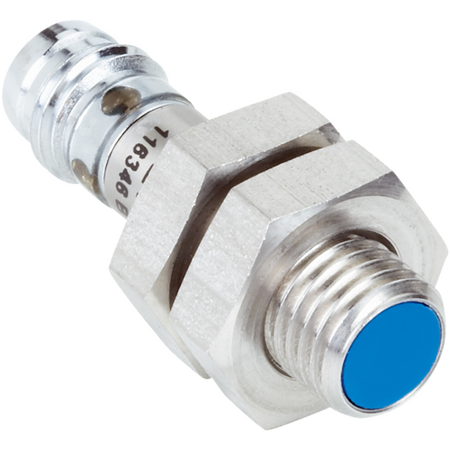

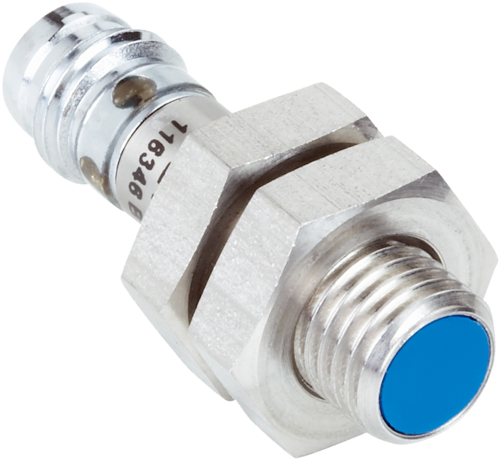

M8 Inductive Proximity Sensor Short Body IP67 Rated Variant-2 SICK

BRAND: SICK
SKU: 6020112
$263.30 List price: $331.00
+ −
30 Days Return Electricians Unlock Trade Access
The M8 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a short body with a sensing range of 1.5 mm and a

Alternatively Known As: M8 Inductive Proximity Sensor, Short Body Inductive Sensor, PNP NO Proximity Sensor, SICK IM08 Sensor

Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Ripple: ≤ 20%
  • Voltage drop: ≤ 2 V
  • Time delay before availability: ≤ 10 ms
  • Hysteresis: ≤ 10%
  • Reproducibility: ≤ 5%
  • Temperature drift of sensing range: ± 10%
  • Continuous current Ia: ≤ 200 mA
  • Housing material: Brass, nickel-plated
  • Sensing face material: Plastic
  • Thread length: 12 mm
  • Tightening torque max: 4 Nm
  • EMC compliant according to EN 60947-5-2
  • Dimensions (H x L x W): 8mm x 29mm x 8mm
  • Weight: 0.1 kg
Key Features
  • Short-body housing with M8 x 1 thread size
  • Sensing range of 1.5 mm with safe sensing range of 1.22 mm
  • Flush installation type
  • High switching frequency of 5,000 Hz
  • PNP switching output with NO function
  • Connector M8, 3-pin connection type
  • IP67 rated enclosure for dust and water protection
  • Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
  • Short-circuit and power-up pulse protection included
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
  • Industrial automation for object detection
  • Position sensing in machinery
  • Assembly line monitoring
  • Robotics and conveyor systems
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable nickel-plated brass housing extends product life reducing waste
  • Low power consumption with DC 3-wire electrical wiring
  • Complies with China RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK IM08-1B5PS-ZTK inductive sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
