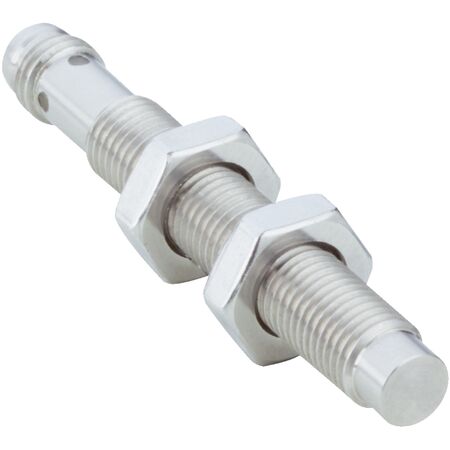

M8 Inductive Proximity Sensor Stainless Steel IP68 & IP69K Rated SICK

BRAND: SICK
SKU: 6068716
$293.10 List price: $368.40
+ −
30 Days Return Electricians Unlock Trade Access
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation
Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Ripple: ≤ 20%
  • Voltage drop: ≤ 2 V
  • Time delay before availability: ≤ 10 ms
  • Hysteresis: 1% to 20%
  • Reproducibility: ≤ 5%
  • Temperature drift of sensing range: ≤ 10%
  • EMC compliant according to EN 60947-5-2
  • Continuous current: ≤ 200 mA
  • Short-circuit and power-up pulse protection included
  • Shock resistance: 30 g, 11 ms; vibration resistance: 10 to 55 Hz, 1 mm
  • Operating temperature range: -25 °C to +85 °C
  • Housing and sensing face material: Stainless steel V2A (DIN 1.4305 / AISI 303)
  • Protection class: III
  • Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
  • Process data length: 1 Byte
  • Dimensions (H x L x W): 8mm x 60mm x 8mm
  • Weight: 0.1 kg
Key Features
  • Metric M8 x 1 housing with Ø 8 mm diameter
  • Pressure resistance up to 100 bar
  • Sensing range Sn of 6 mm with safe sensing range Sa of 4.86 mm
  • Non-flush installation type
  • Switching frequency of 700 Hz with PNP NO output
  • Connector M8, 3-pin connection type
  • Enclosure rating IP68 and IP69K for high protection
  • Sensing face made of stainless steel V2A resistant to coolant lubricants
  • Visual adjustment indicator and IO-Link communication interface
  • Triple sensing range capability
  • Includes mounting nut and washers made of V2A stainless steel
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
  • Industrial automation for object detection
  • Zones with coolants and lubricants
  • Difficult application conditions requiring robust sensing
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable stainless steel housing reduces replacement frequency and waste
  • Energy-efficient sensor operation minimizes power consumption
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK IM08-06NPS-VT1 inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
