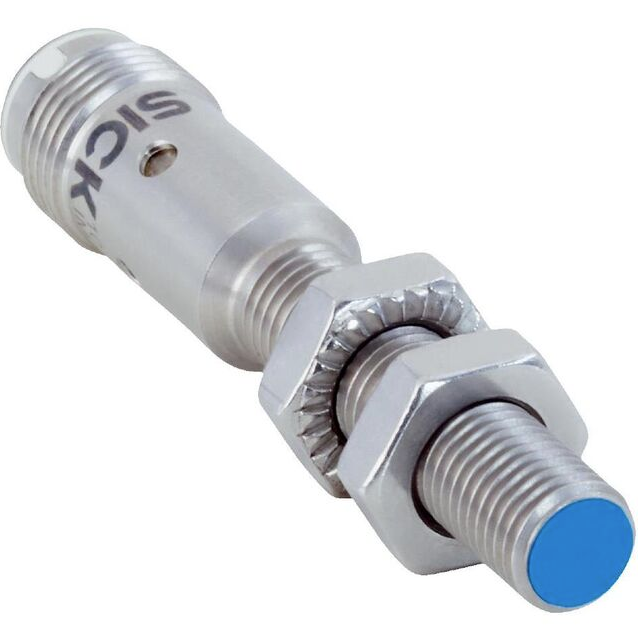

M8 Inductive Proximity Sensor Stainless Steel V2A 2mm Sensing Range Variant-2 SICK

BRAND: SICK
SKU: 1074352
$169.60 List price: $213.10
+ −
30 Days Return Electricians Unlock Trade Access
The M8 Inductive Proximity Sensor is designed for industrial automation, featuring a durable stainless steel V2A housing and a 2mm sensing range.

Alternatively Known As: M8 Inductive Proximity Sensor, NPN Inductive Sensor, Flush Mount Inductive Sensor, Stainless Steel Proximity Sensor

Technical Specifications
  • Housing: Stainless steel V2A, DIN 1.4305 / AISI 303
  • Thread size: M8 x 1
  • Diameter: 8 mm
  • Sensing range Sn: 2 mm
  • Safe sensing range Sa: 1.62 mm
  • Installation type: Flush
  • Switching frequency: 4,000 Hz
  • Connection type: Male connector M12, 4-pin
  • Switching output: NPN complementary
  • Electrical wiring: DC 4-wire
  • Supply voltage: 10 V DC to 30 V DC
  • Ripple: ≤ 10%
  • Voltage drop: ≤ 2 V
  • Hysteresis: 3% to 20%
  • Reproducibility: ≤ 2%
  • Temperature drift (of Sr): ± 10%
  • EMC: According to EN 60947-5-2
  • Continuous current Ia: ≤ 200 mA
  • No load current: ≤ 10 mA
  • Short-circuit protection: Yes
  • Power-up pulse protection: Yes
  • Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm / 55 Hz to 500 Hz / 15 g
  • Ambient operating temperature: -40 °C to +100 °C
  • Sensing face material: Plastic, LCP
  • Housing length: 50 mm
  • Thread length: 38 mm
  • Tightening torque max: Typically 7 Nm to 14 Nm
  • Protection class: III
  • UL File No.: E181493
  • Dimensions (H x L x W): 50mm x 50mm x 8mm
  • Weight: 0.1 kg
Key Features
  • Standard M8 x 1 housing with stainless steel V2A material
  • Flush installation type with 2 mm sensing range
  • NPN complementary switching output with DC 4-wire electrical wiring
  • High switching frequency of 4,000 Hz
  • Enclosure rating IP68 and IP69K for protection against dust and water
  • Resistant against coolant lubricants and temperature resistant from -40°C to +100°C
  • Shock and vibration resistant with high durability
  • Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
  • Industrial automation for detecting metal objects
  • Mobile machines operating in harsh environments
  • Zones with coolants and lubricants
  • Difficult application conditions requiring robust sensors
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable stainless steel housing reduces replacement frequency and waste
  • High resistance to harsh environments minimizes sensor failure and electronic waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK IMB08-02BNPVC0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
