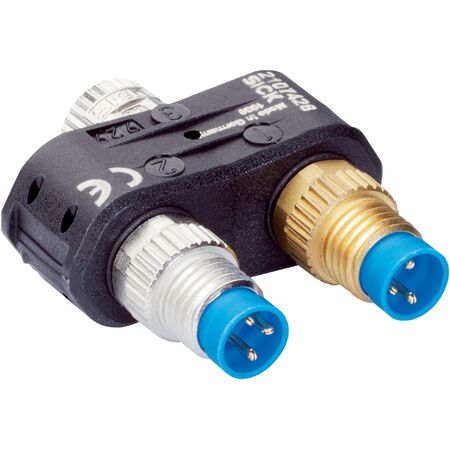

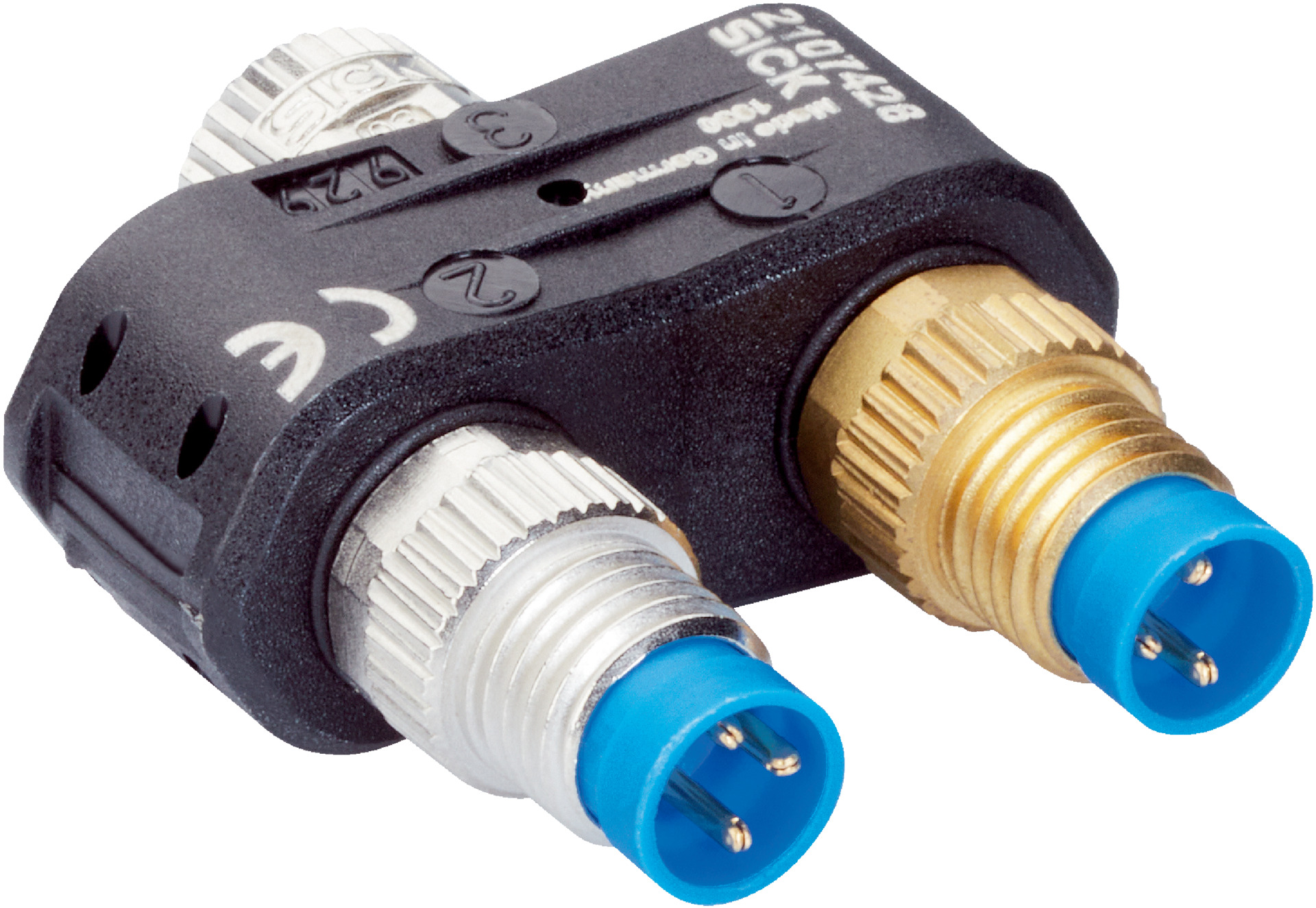

M8 Industrial Connector | Female 4-Pin & Male 3-Pin | IP67 Rated | by SICK
The M8 Industrial Connector YF8U14-000S01MY8A3 features a female 4-pin A-coded head and male 3-pin A-coded heads, designed for reliable connections in industrial automation systems. With an IP67 enclosure rating, it offers excellent dust and water protection, making it ideal for sensor and actuator connections in harsh environments. Built to withstand temperatures from -25°C to +85°C, this connector ensures high performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, A-coded
- Connection type head B: Male connector, M8, 3-pin, A-coded
- Connection type head C: Male connector, M8, 3-pin, A-coded
- Locking plug connector: Screw connection
- Locking nut material: Zinc die-cast, nickel-plated
- Width across flats: 9 mm
- Tightening torque: 0.4 Nm
- Shielding: Unshielded
- Reference voltage: ≤ 30 V AC/DC
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Insulation resistance: 100 MΩ
- Contamination rating: 3
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Enclosure rating: IP67
- Operating temperature: -25 °C to +85 °C
- UL File No.: E335179
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 4-pin, A-coded on head A
- Male connector M8, 3-pin, A-coded on heads B and C
- Screw connection locking plug
- Zinc die-cast, nickel-plated locking nut
- Unshielded design
- IP67 enclosure rating for dust and water protection
- Operating temperature range from -25°C to +85°C
- Rated impulse voltage of 0.8 kV
- Current loading capacity of 4 A
- High insulation resistance of 100 MΩ
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical connectors to ensure proper connection and safety compliance.
Applications
- Industrial automation systems
- Sensor and actuator connections
- Factory and process automation
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF8U14-000S01MY8A3 Industrial Connector is available for immediate purchase, ideal for industrial automation and sensor connection applications.
