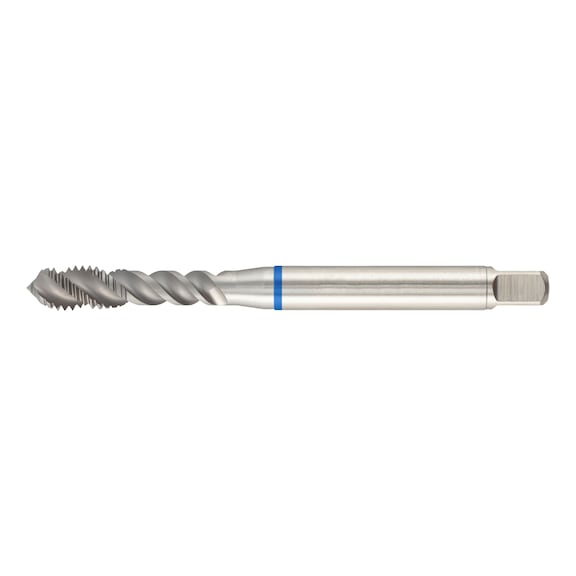

M8 Metric Thread Cutter | Vario Geometry | Optimized Cutting Edge | 30% Longer Service Life | by Wurth
The M8 Metric Thread Cutter is designed for precision machining in general structural steels and non-alloyed tempering steels. Featuring newly developed Vario geometry and a multi-stage finishing process, this tool ensures optimized cutting performance and up to 30% longer service life compared to conventional taps. Ideal for trained machinists using milling/drill centers and pedestal drilling machines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Metric Thread Cutter | Vario Geometry | Optimized Cutting Edge | 30% Longer Service Life | by Wurth
Brand: Wurth
SKU: 653800800
Alternatively Known As: M8 Thread Cutter, Metric Thread Tap M8, Steel Thread Cutter, Machine Tap M8
Technical Specifications
- Thread type: Metric thread
- Material to be processed: Steel
- Hole type: Blind hole up to 2.5xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Thread type x nominal diameter: M8
- Pitch: 1.25 mm
- Length: 90 mm
- Shank diameter: 8.0 mm
- Size of square: 6.2 mm
- DIN: 371
- Cutting material: HSCo
- Surface: Plain
- Form: C
- Core hole diameter: 6.8 mm
- Twist angle: 45° Vario
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2X (6HX)
- Suitable for tensile strength up to: 1200 N/mm²
- Service life (points system): 3 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 3 of 4 points
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 90mm x 90mm x 8mm
- Weight: 0.1 kg
Key Features
- Newly developed Vario geometry for optimized cutting
- Multi-stage finishing process for optimized cutting edge preparation
- Angled threaded part for improved performance
- Cutting edge geometry precisely tailored to steel materials
- Up to 30% longer service life compared to conventional plain machine taps
- Exclusive availability from Wurth
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- Use by trained machinists or operators familiar with thread cutting tools and safety procedures is recommended.
Applications
- Machining: Thread cutting in general structural steels and non-alloyed tempering steels
- Suitable for use with milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact.
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth M8 Metric Thread Cutter is available for immediate purchase, ideal for machining applications in steel materials.
