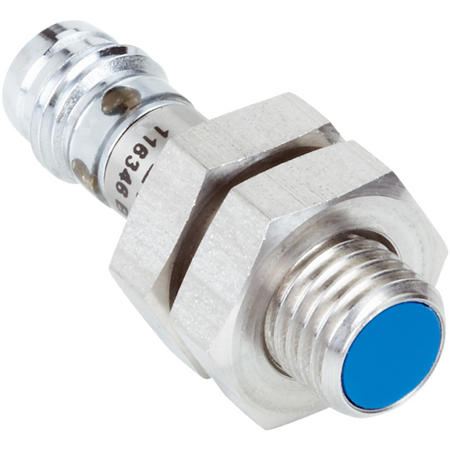

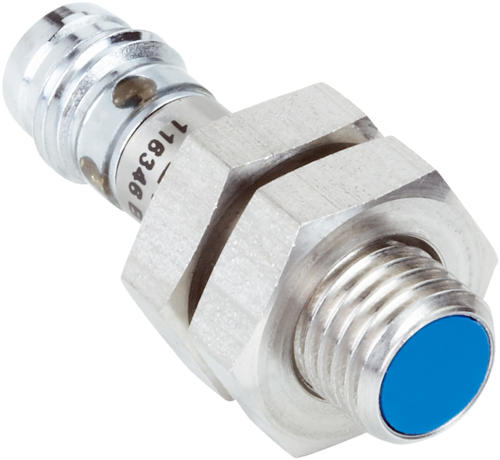

M8 Proximity Sensor IM08-1B5PS-ZC1 IP67 Rated 1.5mm Sensing Range SICK

BRAND: SICK
SKU: 6020223
$200.80 List price: $252.40
+ −
30 Days Return Electricians Unlock Trade Access
The M8 Proximity Sensor IM08-1B5PS-ZC1 is designed for industrial automation, featuring a 1.5mm sensing range and a high switching frequency of 3000 Hz.

Alternatively Known As: M8 Proximity Sensor, IM08 Proximity Switch, SICK M8 Sensor, M8 Inductive Sensor

Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Ripple: ≤ 10%
  • Voltage drop: ≤ 1.2 V
  • Time delay before availability: ≤ 100 ms
  • Hysteresis: 2% to 10%
  • Reproducibility: ≤ 2%
  • Temperature drift of sensing range: ± 10%
  • Continuous current Ia: ≤ 200 mA
  • Shock resistance: 30 g, 11 ms
  • Vibration resistance: 10 to 55 Hz, 1 mm amplitude
  • Housing length: 60 mm
  • Thread length: 35.2 mm
  • Tightening torque max: ≤ 4 Nm
  • EMC compliant according to EN 60947-5-2
  • Dimensions (H x L x W): 8mm x 60mm x 8mm
  • Weight: 0.1 kg
Key Features
  • Standard design housing with brass, nickel-plated brass material
  • M8 x 1 thread size with 8 mm diameter
  • Sensing range of 1.5 mm with flush installation type
  • High switching frequency of 3,000 Hz
  • PNP switching output with normally open (NO) function
  • Male connector M12, 4-pin connection type
  • IP67 rated enclosure for dust and water protection
  • Short-circuit and power-up pulse protection included
  • Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
  • Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
  • Industrial automation for object detection
  • Manufacturing process control
  • Machine safety and monitoring
  • Robotics and assembly lines
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable design reduces replacement frequency and electronic waste
  • Energy-efficient operation minimizes power consumption
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK IM08-1B5PS-ZC1 proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
