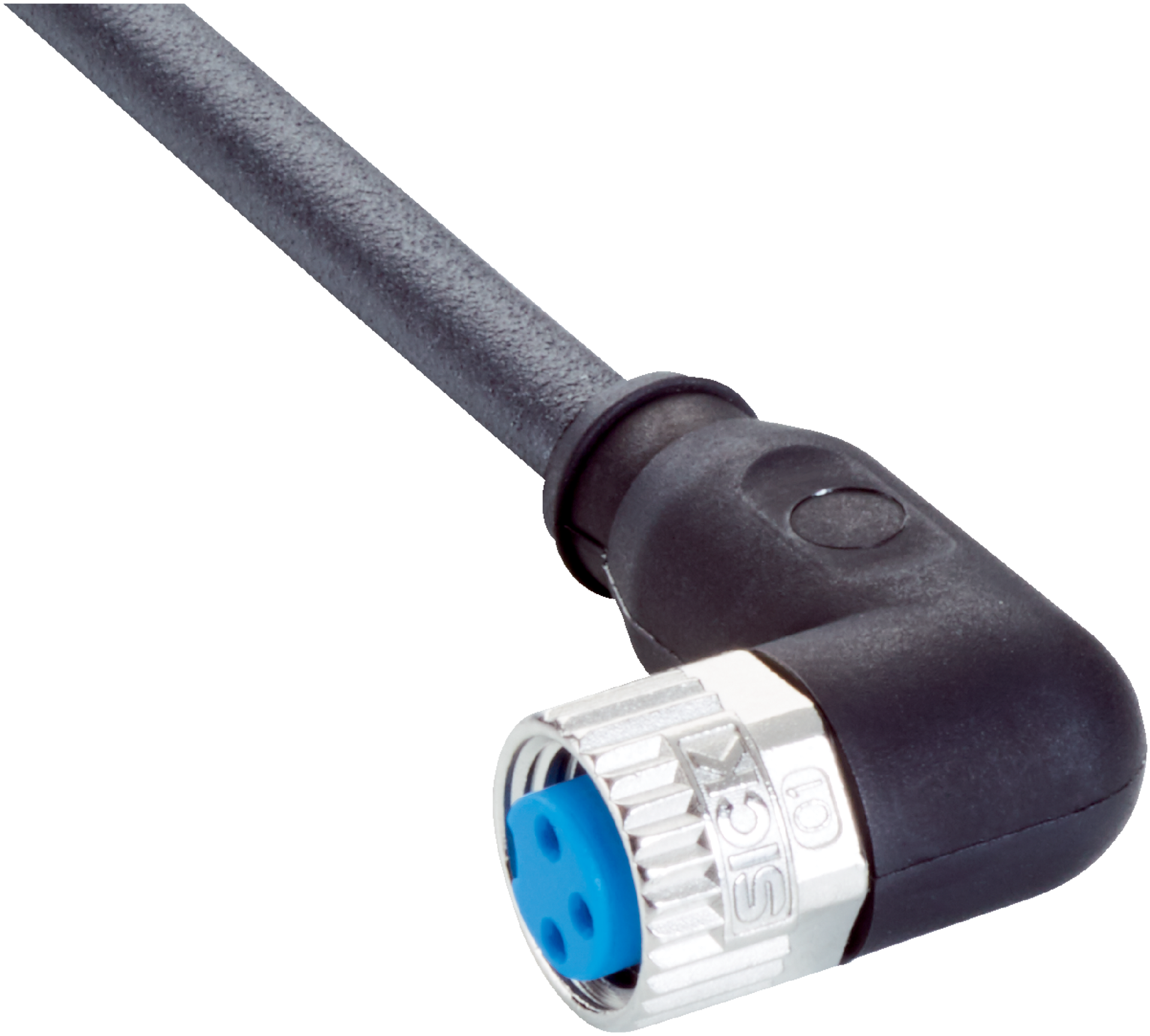

M8 Sensor Cable | 10m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M8 Sensor Cable is designed for robust performance in industrial automation and robotics, featuring a 10m halogen-free PUR cable with a female connector and screw locking mechanism. With an impressive operating temperature range of -40 °C to +85 °C and an enclosure rating of IP65/IP66K/IP67, this cable is perfect for drag chain operations and environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Sensor Cable, Actuator Cable M8 Female, PUR Sensor Cable, Drag Chain Cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 10 m
- Cable type: 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Bending cycles: 10,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 10000mm x 9mm
- Weight: 0.2 kg
Key Features
- Female connector, M8, 3-pin, angled, A-coded
- 10 m, 3-wire, PUR, halogen-free cable
- Screw connection locking plug connector
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Torsion cycles up to 2,000,000 with 180°/1 m torsion force
- Flame retardant cable according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG8U13-100UA1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
