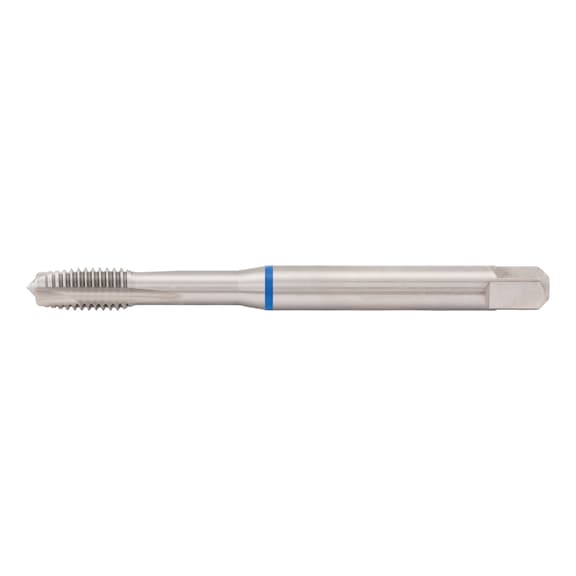

Machine Tap M2.5 | High-Speed Cobalt Steel | DIN 371 Compliant | Cylindrical Shank | by Wurth
The Machine Tap M2.5 is designed for precision machining of long-chipping, non-alloyed steels up to 850 N/mm² tensile strength. Crafted from high-speed cobalt steel (HSCo) and featuring a cylindrical shank with square drive, this tap ensures secure fitting and optimal performance. Ideal for use in milling/drill centers and pedestal drilling machines, it complies with DIN 371 standards for reliable results.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M2.5 | High-Speed Cobalt Steel | DIN 371 Compliant | Cylindrical Shank | by Wurth
Brand: Wurth
SKU: 65325
Alternatively Known As: Machine Tap M2.5, Blue Ring Tap, Metric Thread Cutter, HSCo Tap
Technical Specifications
- Thread type: Metric thread M2.5
- Material to be processed: Steel (general structural and non-alloyed tempering steels)
- Hole type: Clearance hole approx. 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Pitch: 0.45 mm
- Length: 50 mm
- Shank diameter: 2.8 mm
- Size of square: 2.1 mm
- DIN: 371
- Cutting material: HSCo (High-Speed Cobalt Steel)
- Surface: Plain
- Form: B
- Core hole diameter: 2.05 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Suitable for tensile strength up to: 850 N/mm²
- Service life rating: 2 of 4 points
- Trueness to gauge rating: 4 of 4 points
- Versatility rating: 1 of 4 points
- Cutting behaviour rating: 3 of 4 points
- Chip formation rating: 2 of 4 points
- Dimensions (H x L x W): n/a mm x 50mm x n/a mm
- Weight: 0.1 kg
Key Features
- Metric thread type M2.5 with 0.45 mm pitch
- High-speed cobalt steel (HSCo) cutting material
- Cylindrical shank with square drive for secure fitting
- Complies with DIN 371 standard
- ISO 2 (6H) tolerance for screw taps
- Plain surface finish
- Form B design for general applications
Professional Installation Requirements
- Professional use by trained machinists or operators recommended for optimal performance and safety.
Applications
- General machining of long-chipping, non-alloyed steels up to 850 N/mm² tensile strength
- Suitable for milling/drill centers and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable high-quality material reduces frequency of tool replacement, minimizing waste
- Efficient cutting reduces energy consumption during machining
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Blue Ring Machine Tap M2.5 is available for immediate purchase, ideal for precision machining in industrial and manufacturing settings.
