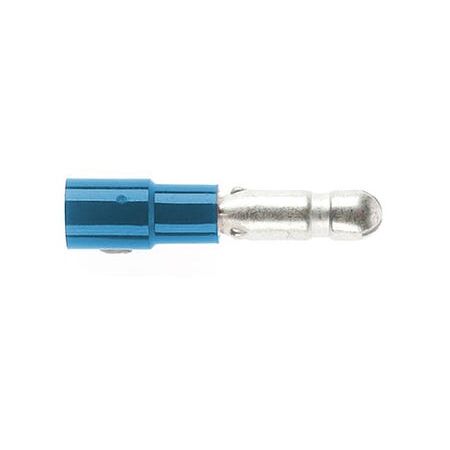

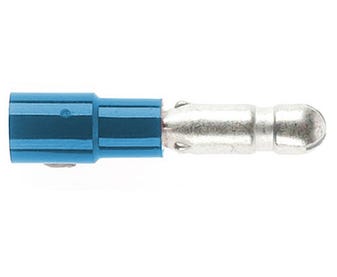

Male Bullet Terminal 5mm 300V PVC-Insulated Blue Cabac
Male bullet terminal with 5mm size and 300V rating—ideal for electrical connections in switchgear and terminal blocks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa (Quick Connect Range), 200 MPa (Except Quick Connect Range)
- Ductile Rating: 6% min (Quick Connect Range), 35% min (Except Quick Connect Range)
- Final Metal State: Annealed (Quick Connect Range), Fully Annealed (Except Quick Connect Range)
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating: Tin, 99.9% Tin Content, 2.5 microns thickness
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: 1.5kV (min)
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Conformant Standards: AS4437, AS3169 Australia
- Dimensions (H x L x W): 15mm x 25mm x 5mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimising substandard crimps
- Long term electrical integrity
- Voltage rating 300V
- Full technical back up including QA
- Double grip - separate crimp barrels for conductor and insulation
- PVC insulated to reduce installation errors
Professional Installation Requirements
- All terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type to ensure proper installation and electrical integrity.
Applications
- Electrical connections in switchgear
- Contactors wiring
- Terminal blocks connections
- General electrical and power connectivity applications
Standards & Compliance
- AS3169 – Electrical Connectors
- AS4437 – Pre-Insulated Terminals
Environmental Benefits
- PVC insulation reduces environmental impact by ensuring durability and reducing waste from faulty connections
- Long term electrical integrity reduces need for replacements and waste
Warranty Information
Warranty details available upon request from manufacturer; typically covers manufacturing defects.
Available Now
The Cabac Male Bullet 5mm Blue DG Pre-Insulated Terminal is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable and standard-compliant terminals.
