Making Trade Life Easy!

Home/Electrical/Accessories/Lugs & Associated Equipment/Bullet Terminals/Male Tab Quick Connect 6.4 x 0.8mm | Pre-Insulated | Yellow DG by Cabac

Trade Discount 17%

Male Tab Quick Connect 6.4 X 0.8mm Dg Yellow

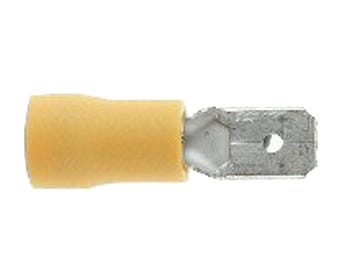

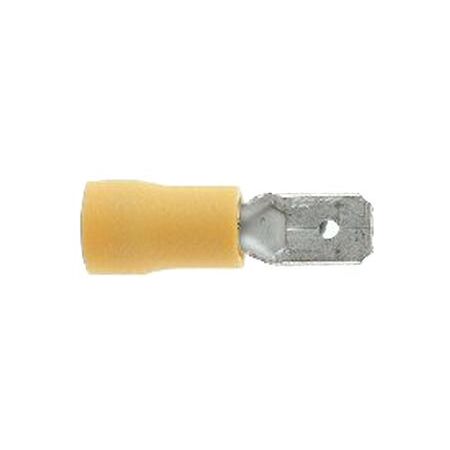

Male Tab Quick Connect 6.4 x 0.8mm | Pre-Insulated | Yellow DG by Cabac

BRAND: CABAC

SKU: MT5.5-6.4DG

$11.10 List price: $13.40

+ −

30 Days Return Delivery Options

Male tab quick connect with 6.4 x 0.8mm dimensions and pre-insulated design—ideal for electrical wiring connections. Built for reliability, with long-term integrity and reduced installation errors.

Description

Product Name/Title: Male Tab Quick Connect 6.4 X 0.8mm Dg Yellow

Brand: Cabac

SKU: MT5.5-6.4DG

Alternatively Known As: Male Quick Connect Terminal, Male Spade Terminal, Pre-insulated Male Tab Connector, Yellow Quick Connect Terminal

Technical Specifications

Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
Tensile Strength: 580 MPa
Ductile Rating: 6% min
Final Metal State: Annealed
Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
Electroplating Material: Tin with 99.9% Tin Content
Plating Thickness: 2.5 microns
Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
Breakdown Voltage: 1.5kV (min)
Insulation Resistance: Above 100 meg ohms
Working Voltage: Up to 300V AC/DC
Torque Recommendations: Varies by thread diameter, e.g., 3mm thread torque 2 Nm
Nominal Pull Out Force: Ranges from 4.6 kg to 35.2 kg depending on wire size
Dimensions (H x L x W): 0.8mm x 15mm x 6.4mm
Weight: 0.1 kg

Key Features

High quality product meeting International Standards
Funnel entry terminals allow easy conductor entry, minimising substandard crimps
Long term electrical integrity
Translucent nylon in fully insulated quick connector reduces installation errors
Voltage rating 300V
Full technical backup including QA
Conforms to AS 3169 and AS 4437

Professional Installation Requirements

Terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type to ensure secure and reliable connections.

Applications

Electrical wiring connections in switchgear
Contactors and terminal blocks
General electrical and power connectivity applications

Standards & Compliance

AS/NZS 3123 – Industrial Plugs and Socket-Outlets
AS 3169
AS 4437

Environmental Benefits

Reduces electrical faults and waste by ensuring secure connections
Durable materials extend product life reducing replacement frequency

Warranty Information

Warranty details available upon request; typically covered against manufacturing defects.

Available Now

The Cabac Male Tab Quick Connect 6.4 x 0.8mm Yellow DG Terminal is available for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable and safe terminal connections.
