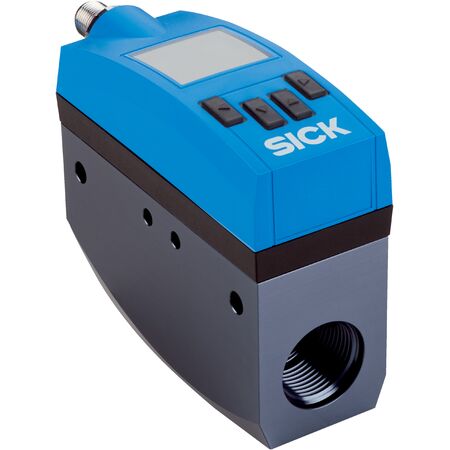

Mass Flow Meter FTMG-ISD15AXX | Calorimetric & Piezoresistive | IP65/IP67 Rated | by SICK
The FTMG-ISD15AXX Mass Flow Meter is designed for precise measurement of compressed air and gas flow, utilizing calorimetric and piezoresistive principles. With a robust IP65/IP67 enclosure and an adjustable OLED display, it’s perfect for industrial process monitoring and control, ensuring high accuracy and fast response times for optimal performance in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric (flow, temperature), piezoresistive (pressure)
- Medium: Compressed air (ISO 8573-1:2010 [3:4:4]), Argon, nitrogen, carbon dioxide
- Measured values: Mass, volume, mass flow rate, volumetric flow rate, energy, flow velocity, pressure, temperature
- Nominal width measuring tube: DN 15
- Measuring range standard: 5.3 l/min to 1,060.3 l/min, 0.5 m/s to 100 m/s
- Measuring range enhanced: 1,060.3 l/min to 1,590.4 l/min, 100 m/s to 150 m/s
- Process temperature range: -20 °C to +60 °C
- Process pressure range: 0 bar to 16 bar
- Communication interface: IO-Link V1.1
- Display: 128 x 128 pixels adjustable rotary OLED display with 4 pushbuttons
- Measurement accuracy standard: ±3% of measured value + 0.3% of measuring range limit
- Measurement accuracy enhanced: ±8% of measured value + 1% of measuring range limit
- Repeatability: ±1.5% of measured value
- Response time: <0.3 seconds
- Temperature measurement accuracy: ±2 °C
- Pressure measurement accuracy: ±1.5% of measuring range end value
- Supply voltage: 17 V DC to 30 V DC
- Power consumption: <4.5 W at 24 V DC without output load
- Connection type: M12 x 1 round connector, 5-pin, A-coded
- Output signals: Analog and digital outputs including frequency pulse and IO-Link
- Enclosure rating: IP65 and IP67
- Material: Stainless steel, aluminum, PC+ABS, PA66+PA6I GF50, TPE
- Dimensions (H x L x W): 120mm x 150mm x 50mm
- Weight: 0.805 kg
Key Features
- Calorimetric and piezoresistive measurement principles
- Measures mass, volume, mass flow rate, volumetric flow rate, energy, flow velocity, pressure, and temperature
- Nominal width measuring tube DN 15
- IO-Link V1.1 communication interface
- 128 x 128 pixels adjustable rotary OLED display with 4 pushbuttons
- High measurement accuracy with standard and enhanced ranges
- Fast response time under 0.3 seconds
- Robust IP65/IP67 rated enclosure
- Long MTTF greater than 100 years
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial flow measurement devices is recommended to ensure proper setup and calibration.
Applications
- Industrial process monitoring and control
- Compressed air flow measurement
- Gas flow measurement for Argon, nitrogen, carbon dioxide
- Energy and mass flow rate measurement in manufacturing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient monitoring and control of compressed air and gas usage, reducing energy waste
- Supports sustainable industrial processes by providing accurate flow and energy measurement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK FTMG-ISD15AXX Mass Flow Meter is available for immediate purchase, ideal for industrial and manufacturing applications requiring precise gas and air flow measurement.
