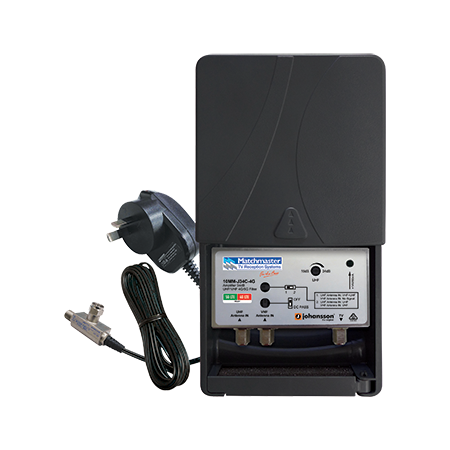

Masthead Amplifier UHF 34dB | 4G/5G Filter | Power Supply Included by Matchmaster
Masthead amplifier with 34dB gain and built-in 4G/5G filter—ideal for enhancing UHF signal reception in homes and offices. Built for optimal performance, with included power supply for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency Range: VHF 174-230MHz, UHF 520-694MHz
- Gain: Passive -2 dB, Amplified 36 dB
- Noise Figure: 2.5 dB
- Maximum Input Level: 84 dBµV
- Maximum Output Level: 102 dBµV
- Power Consumption: 60mA at 14V DC
- Connectors: 'F' Type
- Power Supply: 14V DC included
- Dimensions (H x L x W): 60mm x 40mm x 120mm
- Weight: 0.3 kg
Key Features
- 34dB gain low noise amplifier with 24dB gain adjustment in a fully screened housing to maximise signal quality
- Built-in 4G/5G LTE 694MHz low pass filter to eliminate unwanted frequencies
- VHF passive pass-through via combined or separate inputs (selectable)

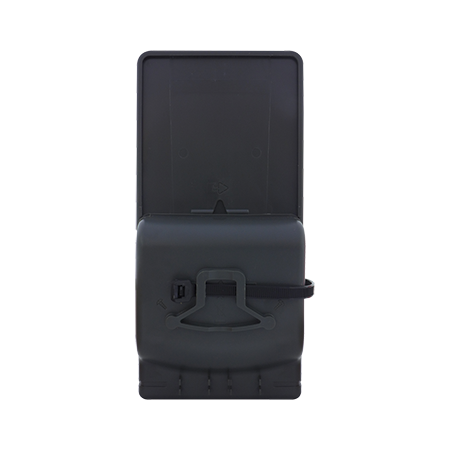

- U/V stabilised weatherproof housing with cable tie
- Wide range DC voltage operation, 5-24V DC with DC pass through to input for cascading amplifiers
- 14V DC power supply included
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal performance and compliance with electrical standards.
Applications
- Residential: Enhance TV signal reception for homes
- Commercial: Improve signal quality in offices and commercial buildings
- Broadcasting: Suitable for use in antenna signal amplification setups
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves signal quality reducing the need for multiple devices and lowering energy consumption
- Weatherproof design extends product lifespan reducing electronic waste
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Matchmaster Masthead Amplifier UHF 34dB with 4G/5G Filter and Power Supply is available now for immediate purchase. Ideal for residential and commercial TV signal enhancement applications.
