Masthead Amplifier VHF/UHF 30dB | 4G/5G Filter | 174-694MHz by Matchmaster
Masthead amplifier with 30dB gain and built-in 4G/5G filter—ideal for enhancing TV signal strength in homes and offices. Built for VHF/UHF frequencies, with included power supply for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

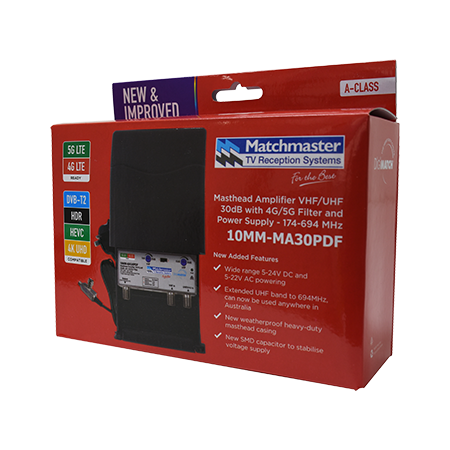

Product Name/Title: Masthead Amplifier VHF/UHF 30dB with 4G/5G Filter and Power Supply - 174-694MHz
Brand: Matchmaster
SKU: 10MM-MA30PDF
Alternatively Known As: VHF/UHF Masthead Amplifier, 4G/5G Filtered TV Amplifier, Wideband TV Signal Amplifier, Outdoor TV Antenna Amplifier
Technical Specifications
- Frequency Range VHF: 174-230MHz
- Frequency Range UHF: 470-694MHz
- VHF Gain: 5-25dB
- UHF Gain: 10-30dB
- Input Mode Switchable between VHF only and VHF+UHF
- Output: 'F' Female (DC 5-24V / AC 5-22V)
- Return Loss: >12dB typical
- Output Level: >105dBuV
- Noise Figure: <=5dB
- Impedance: 75 ohm
- Housing: Alloy diecast with nickel plating
- Power Supply: 190-240V AC/50-60Hz, Output DC 14V/300mA
- DC Cable Length: 1.8m
- Dimensions (H x L x W): 50mm x 18mm x 98mm
- Weight: 0.3 kg
Key Features
- 4G/5G LTE filter built-in from 694MHz providing >40dB filtering @ 750MHz
- Maximum gain of 25dB for VHF and 30dB for UHF with 20dB independent adjustment
- Wide range powering ability with built-in voltage rectifier and regulator (5-24V DC and 5-22V AC)
- Water-resistant and UV-stable heavy-duty housing
- Compatible with combination or separate VHF and UHF antennas via in-built switch

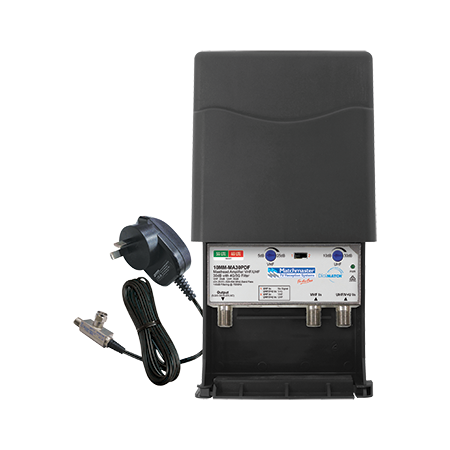

- Includes 14V DC power supply and UV stable heavy-duty cable ties for mounting
- VHF and UHF input return loss: >14dB
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal performance and compliance with electrical safety standards.
Applications
- Use with combination antennas or separate VHF and UHF antennas
- Suitable for all capital cities and regions of Australia
- Maximising local broadcast channel reception
Standards & Compliance
- AS/NZS 60335 – Safety of household and similar electrical appliances
Environmental Benefits
- Improves signal reception reducing the need for multiple antennas and electronic devices
- Energy-efficient power supply reduces power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty terms for details.
Available Now
The Matchmaster Masthead Amplifier VHF/UHF 30dB with 4G/5G Filter and Power Supply is available now for immediate purchase. Ideal for enhancing TV signal reception in residential and commercial settings across Australia.
