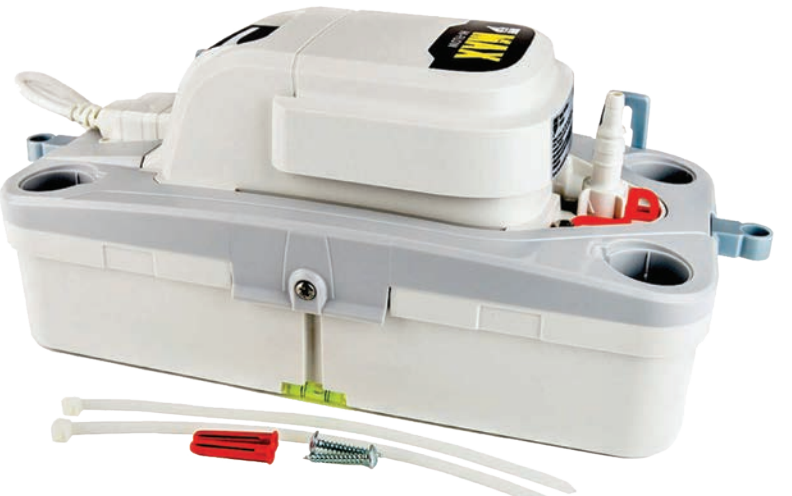

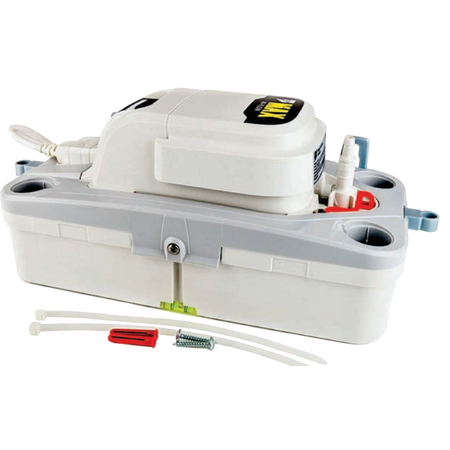

MAX Hi-Flow Condensate Pump | 550 L/h Flow Rate | IP24 Splash Proof | Low Noise Operation | by Aspen Pumps
The MAX Hi-Flow Condensate Pump is designed for efficient condensate removal in ducted air conditioning units and HVAC systems. With a high flow rate of 550 L/h and a low noise level of 44 dB(A), it ensures reliable operation while maintaining a quiet environment. Built with an IP24 splash proof rating and thermal protection, this pump is perfect for professional installations, promoting healthier indoor spaces by preventing water damage and mold growth.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX Hi-Flow Condensate Pump | 550 L/h Flow Rate | IP24 Splash Proof | Low Noise Operation | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP3349
Alternatively Known As: MAX HiFlow condensate pump, High flow condensate removal pump, Aspen condensate pump
Technical Specifications
- Maximum flow rate: 550 L/h at 0 head
- Maximum recommended head: 5 meters
- Tank capacity: 1.7 litres
- Noise level: 44 dB(A) at 1 meter
- Power supply: 230 VAC, 0.8A, 50Hz
- Rated non-continuous operation
- Class I appliance
- Maximum water temperature: 40°C
- Inlet sizes: 4 x 21-27mm
- Outlet sizes: 6mm and 10mm
- IP Protection: IP24
- Safety switch: 3A normally closed
- Thermal protection included
- Dimensions (H x L x W): 120mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- IP24 splash proof rating
- Easy access tank for maintenance
- Built-in spirit level for accurate installation
- Plug & play power cable for simple setup
- High flow rate of 550 litres per hour
- Low noise operation at 44 dB(A) at 1 meter
- Thermal protection for safety
- Safety switch 3A normally closed
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct setup and compliance with safety standards.
Applications
- Ducted air conditioning units
- HVAC systems requiring condensate removal
Standards & Compliance
- Complies with AS/NZS 60335.2.40 for safety of pumps
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Efficient condensate removal helps prevent water damage and mold growth, promoting healthier indoor environments.
- Low power consumption reduces energy usage.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Pumps MAX Hi-Flow Condensate Removal Pump is available now for immediate purchase. Ideal for ducted air conditioning systems requiring reliable and quiet condensate removal.
