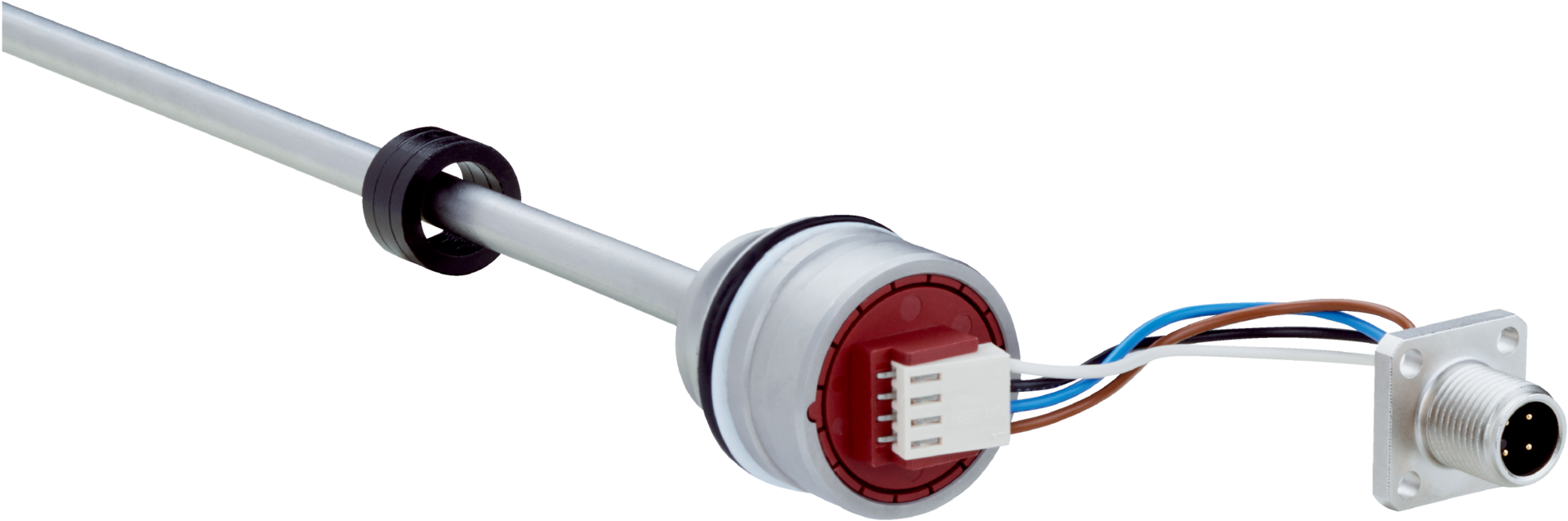

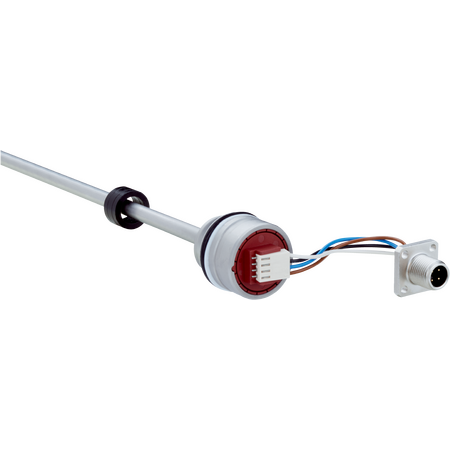

Product Name/Title: MAX30N-72A10BA0700 | Linear encoders
Brand: SICK
SKU: 1127148
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer, industrial linear position sensor
Technical Specifications
- Installation housing: 30 mm for IN cylinder mounting
- Measuring range: 0 mm to 700 mm
- Null zone: 21.5 mm
- Damping zone: 30 mm
- Operating temperature: -30 °C to +95 °C
- Air humidity: 90% (no condensation)
- Operating pressure: 320 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Switch-on current: 2.5 A / 50 µs
- Measuring frequency: 2 ms
- Setpoint tolerance: ≤ ±1 mm
- Hysteresis: ± 0.1 mm
- Repeatability: typically ± 0.2 mm
- Linearity: typically ± 0.25 mm (50 to 500 mm range), ± 0.04% F.S. (500 to 1500 mm range)
- Temperature drift: typically ≤ ± 0.25 mm after 2 min warming up
- Communication interface: Analog current output 4 mA to 20 mA
- Connection: Male M12 type S connector, 4-pin
- Power consumption: ≤ 1.25 W
- Current consumption: ≤ 50 mA
- Load resistance: 100 Ω to 500 Ω
- Overvoltage protection: ≤ 36 V at all poles during power-up (60 s)
- Reverse polarity protection: ≤ 36 V (ISO 16750-2)
- Insulation resistance: ≥ 10 MΩ (ISO 16750-2)
- Dielectric strength: 500 V DC to housing (ISO 16750-2)
- Short-circuit protection: VS – GND on housing
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- O-ring: NBR 70
- Support ring: PTFE
- M12 flange: Nickel-plated brass with O-ring (NBR)
- Wire length: 80 mm
- Enclosure rating: IP67 housing, IP69K M12 connector
- Dimensions (H x L x W): 31mm x 700mm x 30mm
- Weight: 0.5 kg
Key Features
- 30 mm installation housing for IN cylinder mounting
- Measuring range up to 700 mm
- High accuracy with setpoint tolerance ≤ ±1 mm
- Operating temperature range from -30 °C to +95 °C
- Pressure resistance up to 320 bar
- Analog current output 4 mA to 20 mA
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage and reverse polarity protection
- Short-circuit protection and insulation resistance compliant with ISO 16750-2
Professional Installation Requirements
- Professional installation by qualified technicians or electricians is recommended to ensure correct mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool feedback systems
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 1.25 W) supports energy efficiency
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX30N-72A10BA0700 linear encoder is available for immediate purchase. Ideal for industrial automation, hydraulic cylinder position sensing, and machine tool feedback applications.
