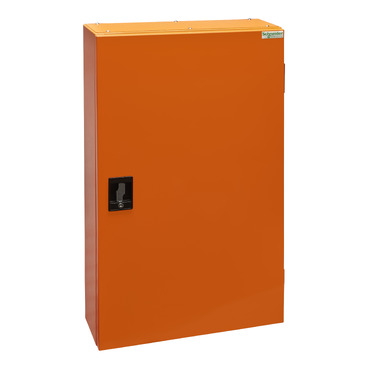

MB Isobar 48P C60 IP42 160A Orange Distribution Board | 48 Pole Capacity | Lockable Door | Steel Construction | @Pack of 1 | by Clipsal
The MB Isobar 48P C60 IP42 160A Orange Distribution Board is designed for extensive circuit distribution in commercial and industrial settings. With a robust 48 pole capacity and a maximum current rating of 160A, it ensures reliable performance. The IP42 rating protects against solid objects and dripping water, while the lockable door enhances safety. Ideal for centralized circuit management in large residential complexes and industrial facilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MB Isobar 48P C60 IP42 160A Orange Distribution Board | 48 Pole Capacity | Lockable Door | Steel Construction | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMB248DM1X15
Alternatively Known As: Clipsal Isobar Distribution Board, 48 Pole Switchboard, MB Isobar 160A Panel, Clipsal Orange Distribution Board, SCHMB248DM1X15
Technical Specifications
- Number of Poles: 48
- Maximum Current: 160A
- Ingress Protection: IP42
- Material: Steel, powder-coated orange
- Compatible Devices: C60 circuit breakers
- Door: Lockable, hinged
- Mounting: Surface mount
- Rated Voltage: 415V AC
- Dimensions (H x L x W): 900mm x 180mm x 600mm
- Weight: 18 kg
Key Features
- 48 pole capacity for extensive circuit distribution
- IP42 rated for protection against solid objects and dripping water
- 160A maximum current rating for high-load applications
- Robust steel construction with orange powder-coated finish
- Compatible with C60 circuit breakers
- Lockable door for enhanced safety and security
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial buildings: electrical distribution and circuit protection
- Industrial facilities: main and sub-distribution boards
- Large residential complexes: centralized circuit management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61439 – Low-voltage switchgear and controlgear assemblies
Environmental Benefits
- Durable steel construction ensures long service life, reducing replacement frequency and waste.
- Powder-coated finish is low-VOC and environmentally friendly.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MB Isobar 48 Pole C60 IP42 160A Orange Distribution Board is available for immediate purchase. Ideal for commercial and industrial electrical distribution applications.
