MB1-BL10 | Actuators and bolts

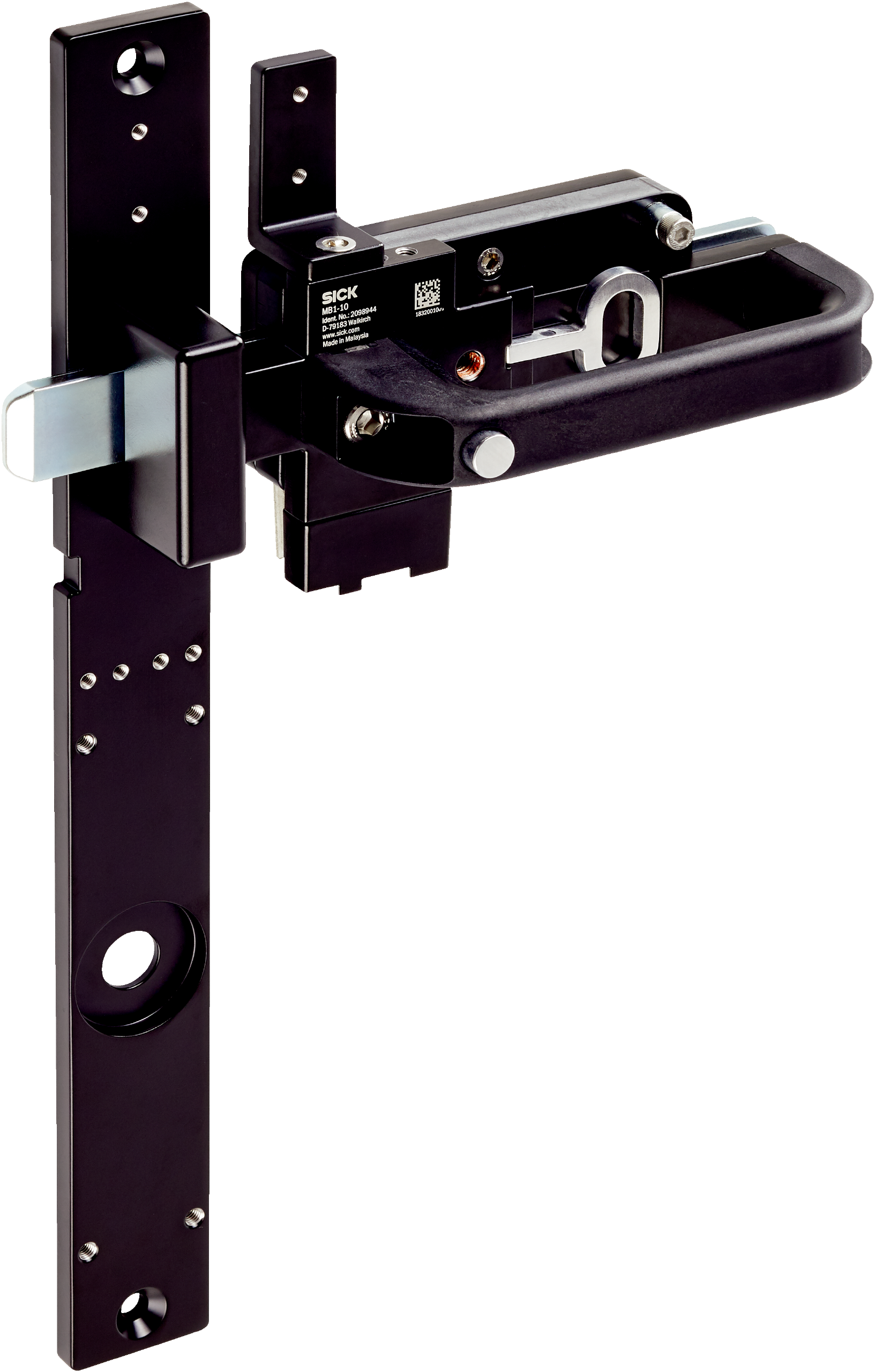

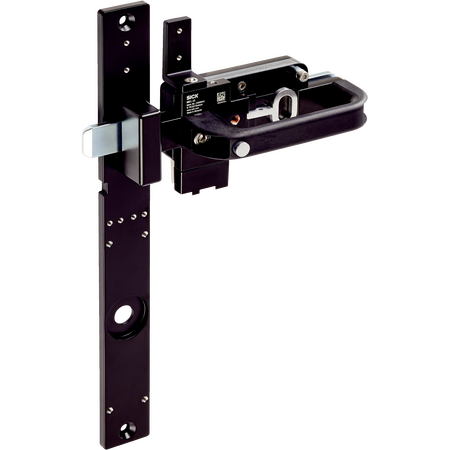

The SICK MB1-BL10 is a complete actuator and bolt set designed for safety locking applications with i10, i110, and TR110 Lock safety switches, featuring a catch release button and ANSI-compliant locking mechanism.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MB1-BL10 | Actuators and bolts
Brand: SICK
SKU: 1091789
Alternatively Known As: Actuator Bolt Set, Safety Lock Bolt Unit, MB1-BL10 Bolt Assembly
Technical Specifications
- Weight: 1.602 kg
- Material: Bolt unit - Steel, zinc coated; Sliding carriage, base plate, frame plate - Aluminum (coated); Handle - VISTAL®; Polyketone components
- Installation tolerance (horizontal): 3 mm to 30 mm
- Includes catch release button with ANSI-compliant locking mechanism
- Dimensions (H x L x W): 50mm x 300mm x 150mm
- Weight: 1.6 kg
Key Features
- Complete set consisting of bolt unit with long frame plate and adapters for actuators
- Catch release button with ANSI-compliant locking mechanism
- Includes bolt unit, long frame plate, adapters for actuator mounting (MB1-BRLK, MB1-BRNC), safety screws, and mounting instructions
- Installation tolerance (horizontal): 3 mm to 30 mm
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper mounting and compliance with safety standards.
Applications
- Safety locking for i10 Lock safety switch with locking function (with iE10-S4 actuator)
- Safety locking for i110 Lock (with iE15-S1 actuator)
- Safety locking for TR110 Lock (with TR110-XAS actuator)
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials such as zinc-coated steel and coated aluminum ensure long product life and reduce waste
- Designed for safety applications to prevent accidents and enhance workplace safety
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK MB1-BL10 actuator and bolt set is available for immediate purchase, ideal for industrial safety locking applications.
