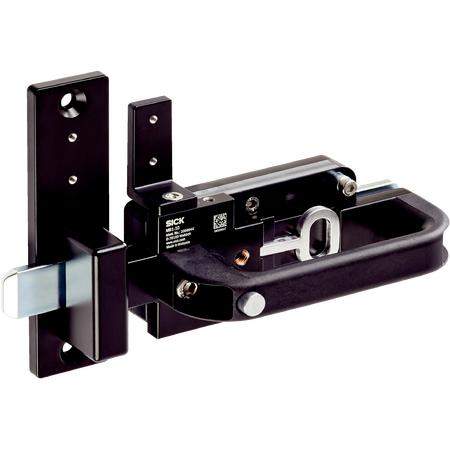

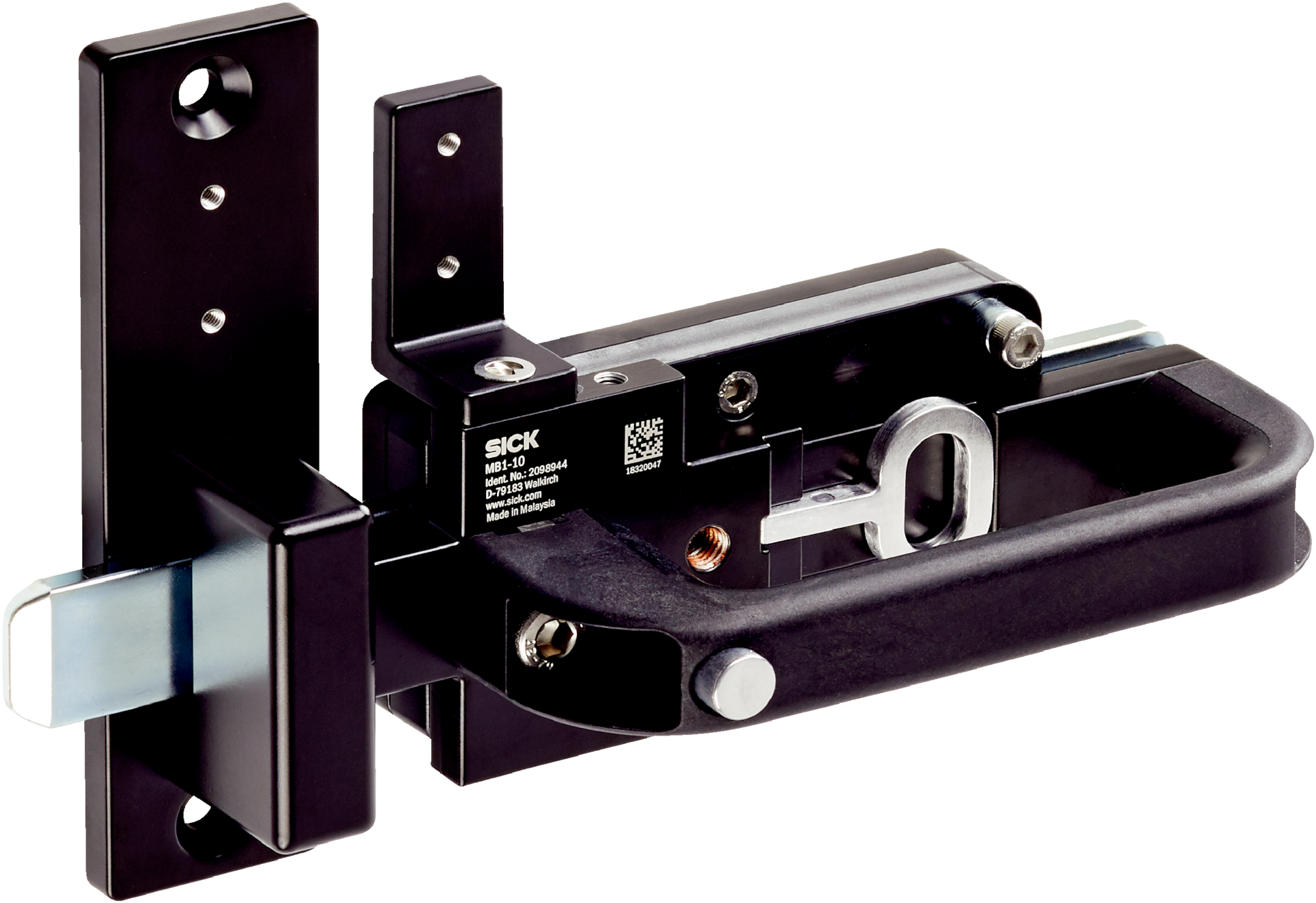

MB1-BS10 | Actuators and bolts

BRAND: SICK
SKU: 1091785
$545.80 List price: $686.00
+ −
30 Days Return Delivery Options
The SICK MB1-BS10 is a complete actuator and bolt set designed for secure mounting with RE1 and STR1 non-contact safety switches, featuring ANSI-compliant locking and flexible installation tolerance.

Product Name/Title: MB1-BS10 | Actuators and bolts

Brand: SICK

SKU: 1091785

Alternatively Known As: Actuator Bolt Set, Safety Switch Bolt Kit, MB1-BS10 Bolt Assembly

Technical Specifications
  • Material: Bolt unit - Steel, zinc coated; Sliding carriage, base plate, frame plate - Aluminum (coated); Handle - VISTAL®; Polyketone components
  • Weight: 1.376 kg
  • Installation tolerance (horizontal): 3 mm to 30 mm
  • Includes catch release button with ANSI-compliant locking mechanism
  • Dimensions (H x L x W): 50mm x 200mm x 150mm
  • Weight: 1.4 kg
Key Features
  • Complete set including bolt unit with short frame plate and adapters for actuators
  • Catch release button with ANSI-compliant locking mechanism
  • Installation tolerance (horizontal): 3 mm to 30 mm
  • Includes safety screws and mounting instructions
Professional Installation Requirements
  • Professional installation by qualified personnel is recommended to ensure compliance with safety standards and proper function.
Applications
  • Suitable for use with RE1 and STR1 non-contact safety switches
  • Industrial automation and safety systems requiring secure actuator mounting
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable materials such as zinc-coated steel and coated aluminum enhance product longevity, reducing waste
  • Designed for secure and reliable operation, minimizing maintenance and replacement frequency
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK warranty policy for details.

Available Now

The SICK MB1-BS10 actuator and bolt set is available for immediate purchase, ideal for industrial safety switch applications.
